2020 Osco Freightliner Elliptical Tanker | Used Truck Details

LET US HELP YOU FIND YOUR NEXT FIRE TRUCK..

2020 Osco Freightliner Elliptical Tanker
$199,960
Truck
2020 Osco Freightliner Elliptical Tanker
Image Image Image Image
Truck Type Used Tankers and Tenders
Manufacturer Osco
Year Built 2020
Mileage
Location USA - Midwest
Stock # 13042
Price $199,960

Ask More Questions About This Truck

Thank you for your interest in the Test Fire Truck! Fill out the form below and we'll immediately start the process to get you more information.




Or Call 256-776-7786
  • Truck Details

General Specs

  • Stock#: 13042
  • 2020
  • Osco
  • M2-106 Freightliner Chassis
  • 2 - Door Commercial
  • Detroit 375 HP Diesel Engine
  • Allison EVS Automatic Transmission
  • Additional equipment not included with purchase unless otherwise listed.

Pump - Tank

  • Berkeley 550 GPM Pump
  • 3000 Gallon Polypropylene Tank
  • Standard Features:
    • 3⁄4” and 1⁄2” Polypropylene construction
    • Primed and painted finish to match the chassis
    • Electronic water level gauges
    • 6” Internal Vent
    • Scene light and beacon light brackets
    • Polypropylene conduit for wires
    • Mild steel skid (Primed and painted finish)
    • All tanks are spring mounted to chassis in the front and middle and solid mounted in rear

    TANK OPENINGS:
    (1) 3” opening in rear street side of tank - Valve and male NST fitting on rear of tank – 2.5”
    (1) 2” opening in rear curb side of tank - Valve and male NST fitting on rear of tank – 2.5”
           - Bray butterfly valves with stainless steel flanges
    (1) 4” box sump located front bottom center to supply pump with 4” Air operated valve

    WATER PUMP SYSTEM:
    Berkeley B2-1/2ZRMS PTO driven centrifugal pump
    550 GPM Max discharge volume
    100 PSI Max discharge pressure
    • 1 – 3” discharge on driver side between cab and tank with valve and 2.5” fitting
    • 1 – 3” discharge on passenger side between cab and tank with valve and 2.5” fitting
    • 1 – 1.5” Pre-connect discharge in driver side hose tray
    (1) 3” Suction on driver side
    • (2) 3” x 10’ PVC Hard suction hose with NST Male x Female ends
    • (1) 3” Floating Strainer for suction

    (1) 2” Tank fill line / Recirculation Line
    (1) Trident Air primer
    All Suction and Discharge to have 3” plumbing and 2.5” Fittings
    All Akron Brass ball valves

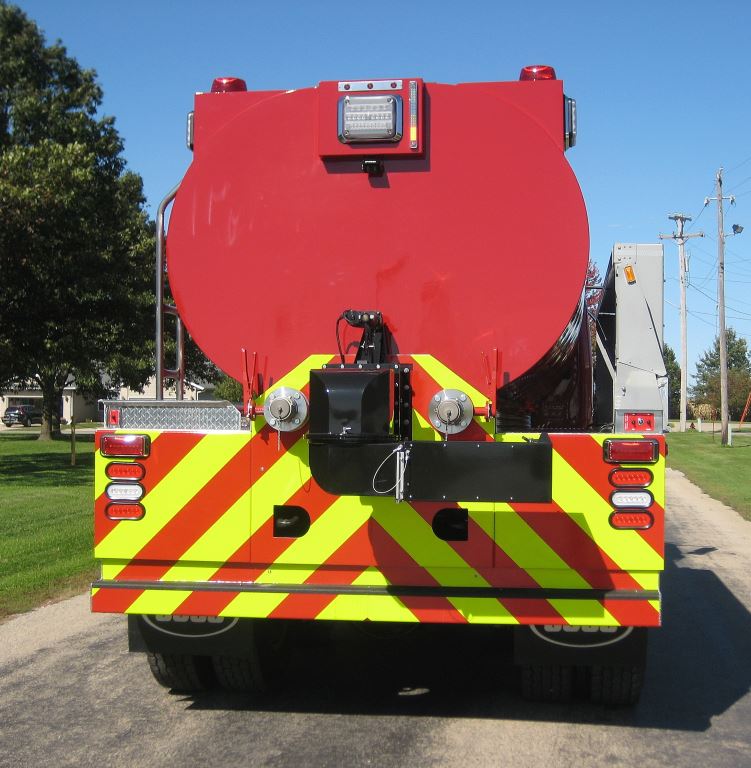

    DUMP VALVE:
    (1) 10” Newton dump valve on rear – Mild steel painted with manual actuation
    (1) 10” Newton SWIVEL attachment on rear dump valve
    (1) 10” Slide-out extension on rear swivel

Electrical - Lighting

Options

  • APPARATUS BODY ACCESSORIES:
    (2) Aluminum diamond tread catwalks, one each side

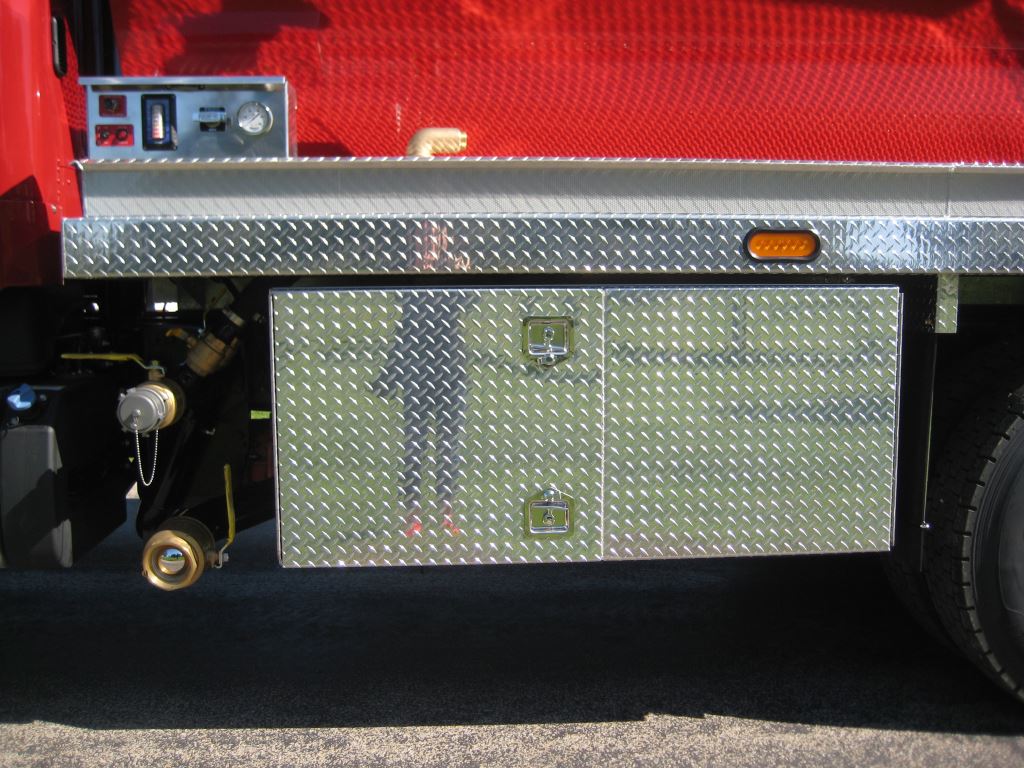

    (1) Storage compartment on left side – Swing open doors – 60” x 26” x 26”
    (1) Storage compartment on right side – Swing open doors – 60” x 26” x 26”
        • Swing open doors on each compartment
        • LED Compartment lights
    (1) Aluminum hose tray on driver side catwalk
    (1) Manual swing down tank rack on passenger side with aluminum cover
        • Fully enclosed with aluminum diamond tread cover
        • Built to fit 3000 gallon standard “Fol-Da-Tank” brand tank

    Aluminum wheels on front axle
    Aluminum wheels on rear axle
    315/80R x 22.5 Tires on front axles
    11R22.5 tires on rear axles
    16,000# front axle capacity
    40,000# rear axle capacity
    5.29 rear axle ratio
    Freightliner Tufftrac spring suspension
    Roll stability control
    Full locking differential lock
    Air conditioning
    AM/FM Radio
    Red seat belt straps
    SCBA Passenger seat
    Tow hooks front and rear
    Master battery disconnect
    Air horns underneath cab to leave room for any light bar

    EMERGENCY LIGHTING:
    (1) Whelen Justice Series LED light bar mounted on cab roof
    (2) Whelen L31HF Series Super-LED beacons on top rear of tank
    (8) Whelen 700 Series Super-LED light heads in lower zones
          (2) located in front grille
          (2) located near front fenders
          (2) located near rear fenders
          (2) located on rear lower zone of truck
    (5) Whelen 900 Series LED scene lights
          (2) located on left side of tank
          (2) located on right side of tank
          (1) located on rear head of tank

    (1) Whelen TAM85 LED traffic advisor on rear of tank with cab controls
          (8) TIR6 Super-LED lamps
          LEFT / RIGHT / SPLIT control pattern
          HIGH / LOW light control for daytime / nighttime operation

    Whelen 100 watt speaker
    Whelen 295SLSA1 Siren amplifier
    Sealed beam LED Stop/Turn/Tail lights on rear of tank
    All apparatus DOT lighting will be sealed beam LED lighting

    CHASSIS COMPONENTS:
    (1) Kussmaul Pump Plus Kit:
          12 Volt Battery Conditioner
          On-board air compressor
          Weatherproof auto-eject plug-in
    (1) Back-up Camera System
          Rear infrared camera on rear of tank
          7” LCD color screen mounted in cab

Apparatus Information

  • This fire truck is a very new piece of apparatus, and rare on the used fire truck market today. Feel free to touch base with us to get the full history on this rig, and we will be glad to pass it along, but with minimal time passed since it was produced, this vehicle will have many years remaining to serve at its next fire department!
