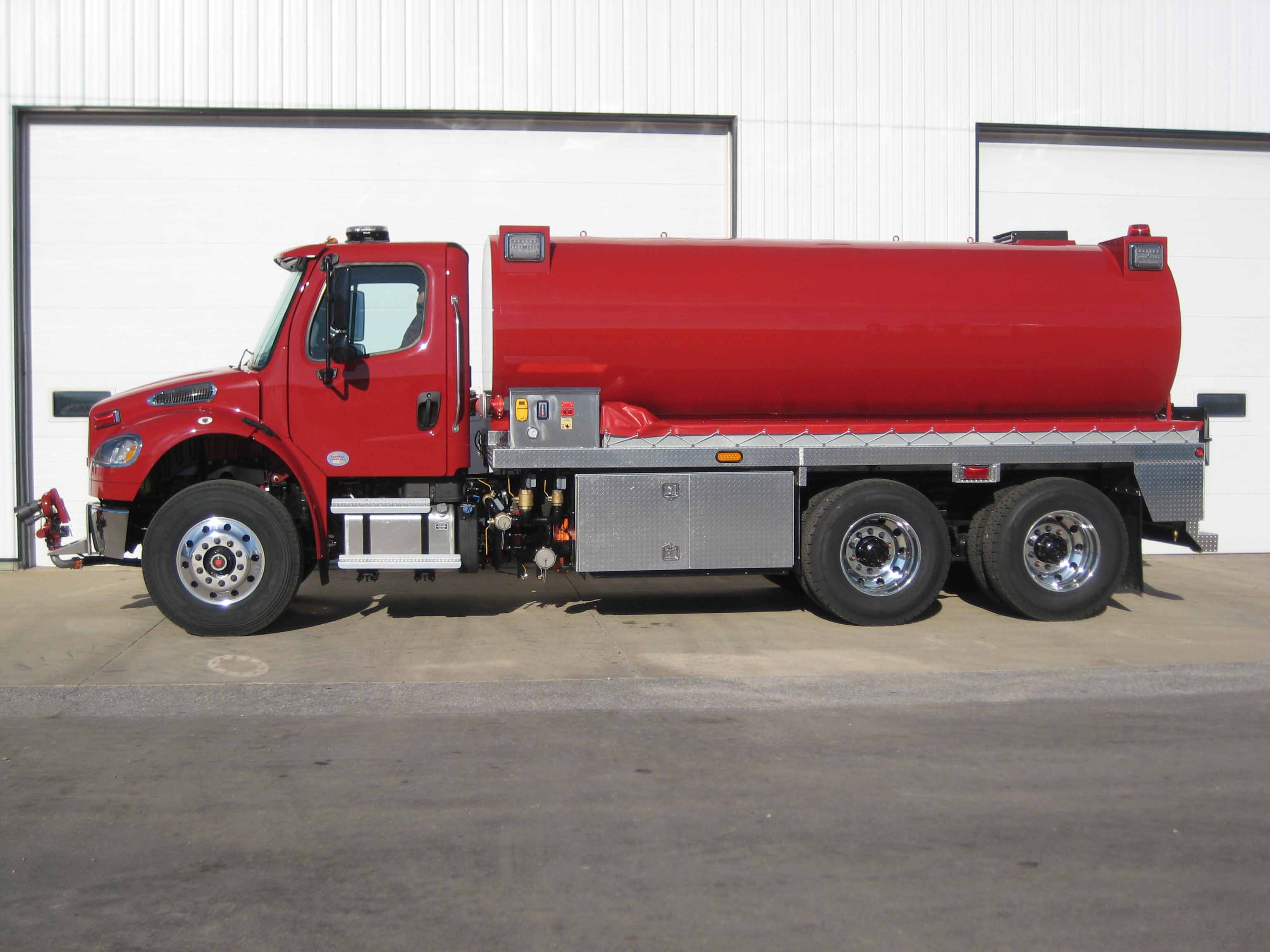

** 2025 Fire Body, Pump & Tank **

TANK:

• Tank to come with a lifetime warranty.

Standard Features:

• 3⁄4” and 1⁄2” Polypropylene construction

• Primed and Painted finish

• 6” Internal Vent

• Scene light and beacon light brackets

• Polypropylene conduit for wires

• Hot Dip Galvanized Sub-frame

• All tanks are spring mounted to chassis in the front and middle and solid mounted in rear

TANK OPENINGS:

(1) 3” opening in rear street side of tank - Valve and male NST fitting on rear of tank – 2.5”

(1) 3” opening in rear curb side of tank - Valve and male NST fitting on rear of tank – 2.5”

(1) 4” box sump located front bottom center to supply pump with 4” Air operated valve

DUMP VALVE:

(1) 10” Newton dump valve on rear – Stainless steel painted with manual actuation

(1) 10” Newton SWIVEL attachment on rear dump valve

(1) 10” Slide-out extension on rear swivel

WATER PUMP SYSTEM:

750 GPM PTO transfer pump

(3) 2.5” Discharges with stainless steel ball valves, NST fittings, caps and chains

- Two (2) located on driver side

- One (1) located on passenger side

(1) 5” Suction on driver side with 5” Long handle chrome cap

(1) 1.5” Pre-connect discharges

Located in driver side hose tray with 1.5” NH swivel fitting

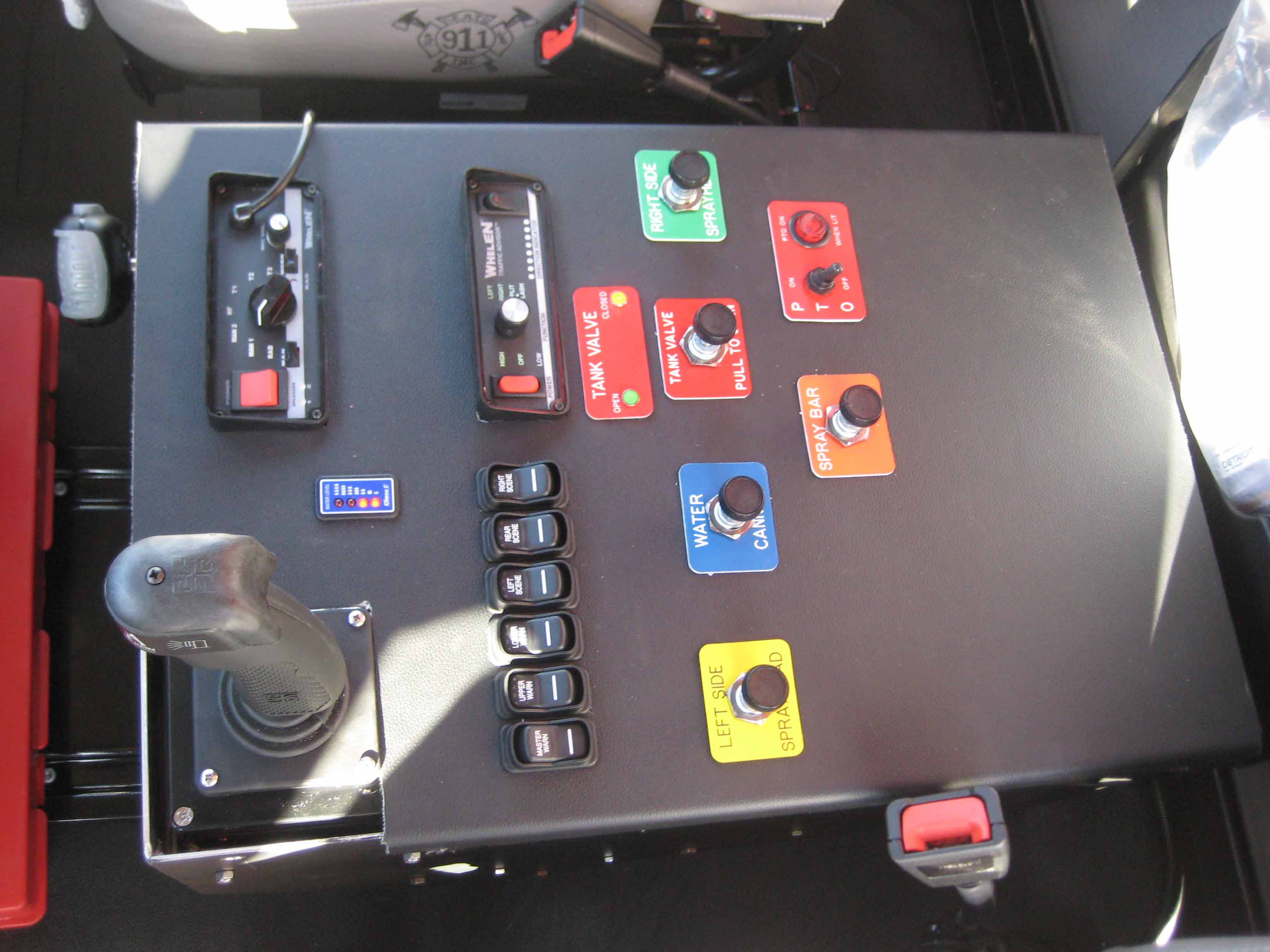

(1) Class 1 Twister throttle and ENFO IV on pump panel

- All stainless-steel plumbing and manifolds

- Quick drop out for repairs

- Includes stainless pump panel, gauges, discharge and suction caps, and labels

(1) Class 1 ITL 40 Electronic water level gauge on pump panel

(1) Whelen PSTANK Monster Electronic water level gauge on rear of tank

EMERGENCY LIGHTING:

(1) Whelen Justice Series LED light bar – 62”

(2) Whelen L31HF Series Super-LED beacons on top rear of tank

(8) Whelen 700 Series Super-LED light heads in lower zones:

- (2) located in front grille

- (2) located near front fenders

- (2) located near rear fenders

- (2) located on rear lower zone of truck

(5) Whelen 900 Series LED scene lights:

- (2) located on left side of tank

- (2) located on right side of tank

- (1) located on rear head of tank

(6) LED Ground lights:

- (2) Located under cab steps

- (2) Located under storage compartments

- (2) Located under rear corners

Whelen 100 watt speaker

Whelen 295SLSA1 Siren amplifier

Sealed beam LED Stop/Turn/Tail lights on rear of tank

All apparatus DOT lighting will be sealed beam LED lighting

APPARATUS BODY ACCESSORIES:

(2) Aluminum diamond tread catwalks, one each side

(2) Aluminum diamond tread storage compartments

Aluminum swing-open doors on each compartment

60” x 26” x 26” Compartment on driver side

60” x 26” x 26” Compartment on passenger side

LED interior compartment lights

Sweep-out floors

(1) Aluminum hose tray on driver side catwalk

(1) Manual swing down porta-tank rack on passenger side

Built to fit 3000 gallon “Fol-da-tank”

Aluminum diamond tread cover or matching painted cover

CHASSIS:

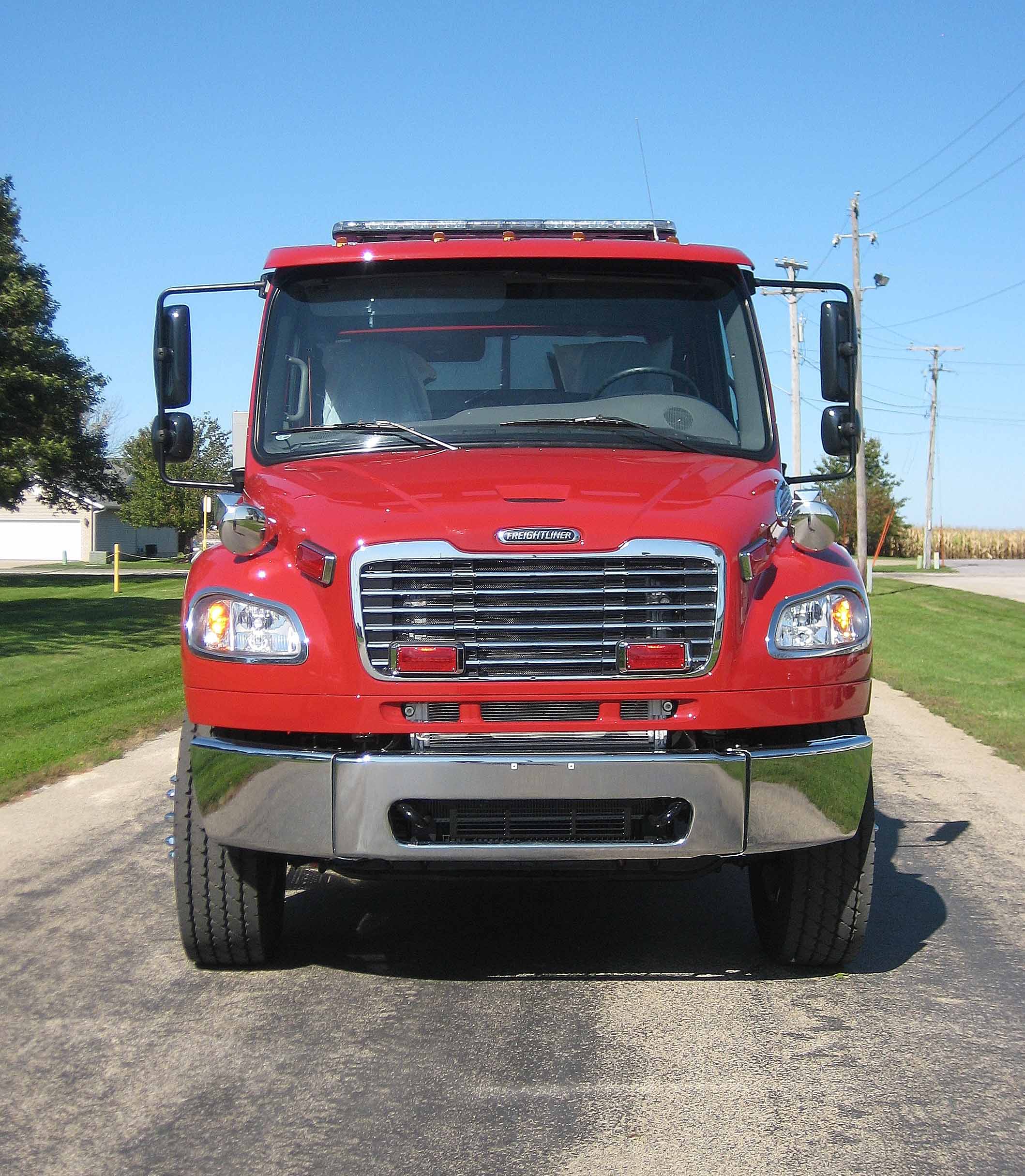

2018 Freightliner M2-106 tandem axle

Color: RED

Motor: Cummins L9 330 Hp / 1050 lb./ft. of torque (Can be turned up if needed)

Transmission: Allison Automatic transmission

Aluminum wheels on front axle

Aluminum wheels on rear axle

12R x 22.5 Tires on front axles

11R x 22.5 tires on rear axles

14,600# front axle capacity

40,000# rear axle capacity

5.29 Rear axle ratio

Kenworth Air Ride suspension

Inter-axle Differential Lock

Air conditioning

AM/FM Radio

Tow hooks front and rear – Recessed hooks on rear

Master battery disconnect

DOT Inspection when completed

MISCELLANEOUS ITEMS:

4” Reflective stripping on each side of apparatus

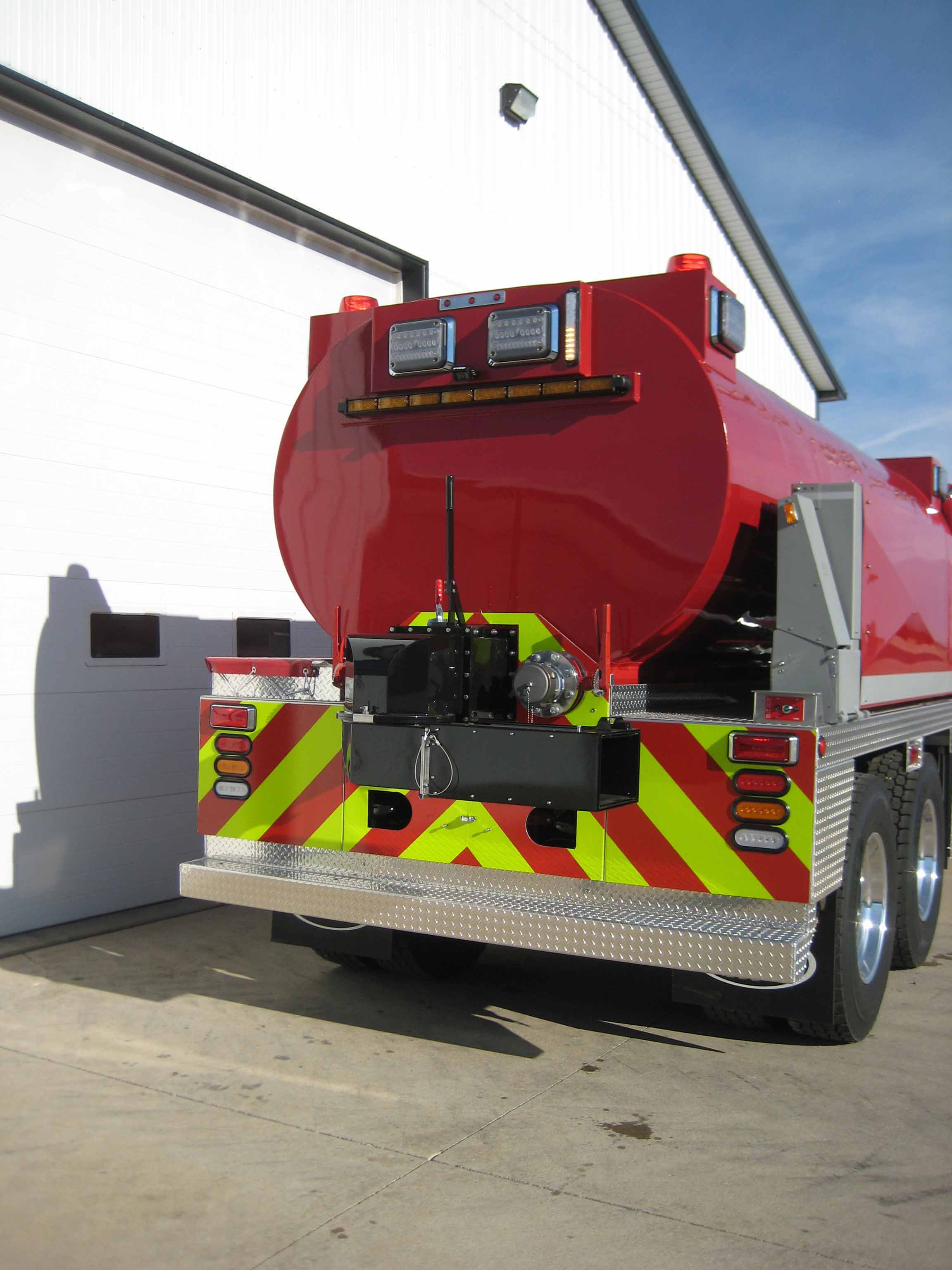

Chevron Striping on rear

- Alternating 6” RED/LIME YELLOW High Intensity reflective tape

Rear View Camera System

- 7” Color screen in top center of cab

- Infrared rear camera with audio

- Camera to come on automatically when truck shifts into reverse
