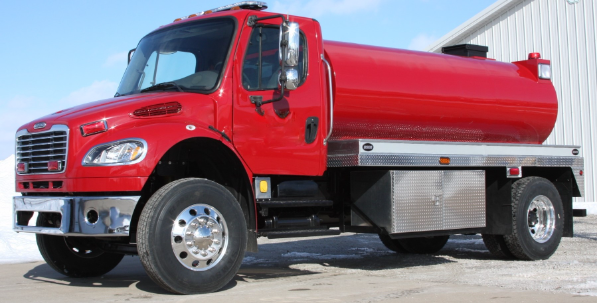

** 2025 Fire Body, Pump & Tank **

TANK:

● Tank to come with a lifetime warranty.

Standard Features:

● ¾” and ½” Polypropylene construction

● Primed and painted finish to match the chassis

● 6” Internal Vent

● Scene light and beacon light brackets

● Polypropylene conduit for wires

● Hot Dip Galvanized Sub-frame

● All tanks are spring mounted to chassis in the front and middle and solid mounted in rear

Electronic Water Level Gauges:

(1) Class 1 ITL-40 Electronic water level gauge on pump panel

(1) Whelen PSTANK Electronic water level gauge on rear of tank

TANK OPENINGS:

(1) 3” opening in rear street side of tank - Butterfly Valve and male NST fitting on rear of tank – 2.5”

(1) 4” opening in rear curb side of tank – Butterfly Valve and male NST fitting on rear of tank – 4”

(1) 4” box sump located front bottom center to supply pump with 4” Air operated valve

WATER PUMP SYSTEM:

Darley 300 GPM Gas powered pump

● 1 – 2.5” discharge on driver side between cab and tank with valve and 2.5” fitting

● 1 – 1.5” discharge on passenger side between cab and tank with valve and 2.5” fitting

● 1 – 1.5” Pre-connect discharge on driver side catwalk – 150’ Capacity – Vinyl Cover

(1) 1” Pump recirculation / tank fill line

- All stainless-steel plumbing and manifolds

DUMP VALVE:

(1) 10” Newton dump valve on rear – Stainless steel with manual actuation

(1) 10” Newton SWIVEL attachment on rear dump valve

(1) 10” Slide-out extension on rear swivel

EMERGENCY LIGHTING:

(1) Whelen Justice Series LED light bar mounted on cab roof

(2) Whelen L31HF Series Super-LED beacons on top rear of tank

o Located on top rear corners of tank

(8) Whelen 700 Series Super-LED light heads in lower zones:

o (2) located in front grille

o (2) located near front fenders

o (2) located near rear fenders

o (2) located on rear lower zone of truck

(6) Whelen 900 Series LED scene lights:

- (2) located on left side of tank

- (2) located on right side of tank

- (2) located on rear head of tank (Rear lights to come on when truck is in REVERSE)

(6) LED Ground lights:

- (2) Located under cab steps

- (2) Located under storage compartments

- (2) Located under rear corners

Whelen 100 watt speaker

Whelen 295SLSA1 Siren amplifier

Sealed beam LED Stop/Turn/Tail lights on rear of tank

APPARATUS BODY ACCESSORIES:

(2) Aluminum diamond tread catwalks, one each side

(2) Aluminum diamond tread storage compartments

- Aluminum swing-open doors on each compartment

- 60” x 26” x 26” Compartment on driver side

- 60” x 26” x 26” Compartment on passenger side

- LED interior compartment lights

- Sweep-out floors

(2) Aluminum hose tray on driver and passenger side catwalk

(1) Manual swing down porta-tank rack on passenger side

o Built to fit 3500 gallon “Fol-da-tank”

o Aluminum diamond tread cover or matching painted cover

(2) Polished Aluminum wheels on front axle

(2) Polished Aluminum wheels on rear axles

New Virgin tires on front

New virgin tires on rear axles

Front axle: 14,600#

Rear axle: 40,000#

Rear axle gear ratio: 5.29

Air ride suspension

Air ride seat driver side

Stationary seat on passenger seat

AM/FM radio

Air conditioning and Heater

Air horns underneath cab

Front and rear tow hooks

Two New batteries

MISCELLANEOUS ITEMS:

4” Reflective stripping on each side of apparatus

Chevron striping on lower rear section of tanker

Rear vision camera system

- Infrared rear camera for night vision

- 7” LCD screen in cab

- Audio for sound in cab

Kussmaul Auto-charge kit with battery conditioner and auto-ejecting plug-in

Kussmaul Air auto-ejecting plug-in
