2017 Helie Freightliner 3600 Gallon Tanker | Used Truck Details

Brindlee Mountain Fire Apparatus

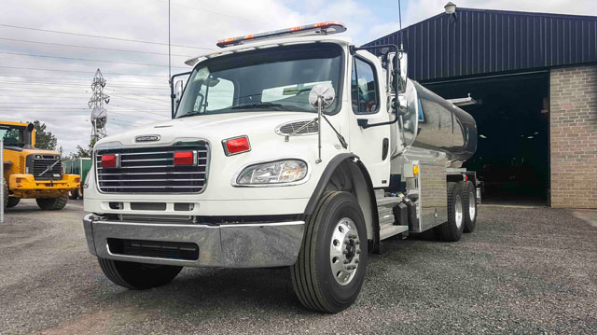

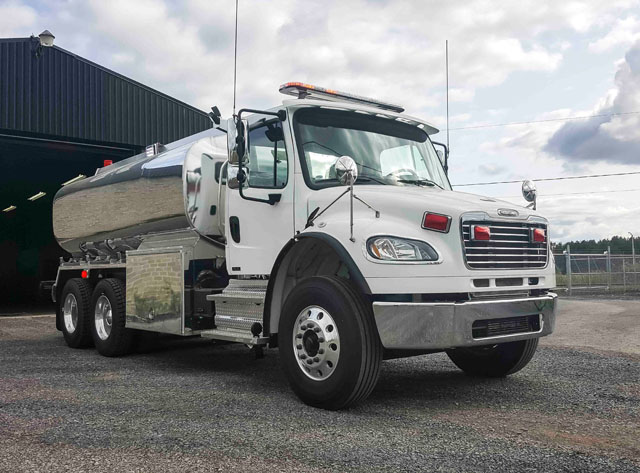

2017 Helie Freightliner 3600 Gallon Tanker
Truck
2017 Helie Freightliner 3600 Gallon Tanker
Image Image Image Image Image
$158,000

For Additional Information,
Contact Brindlee Mountain at:

Local: 256.776.7786

Apparatus currently resides in
Canada

2017 Helie Freightliner 3600 Gallon Tanker
Image Image Image Image Image

**Ask More Questions About This Truck**

**Ask More Questions About This Truck**



Truck Details

2017 Helie Freightliner 3600 Gallon Tanker
Freightliner M2-106 Chassis


Cummins ISL 350 HP Diesel Engine
Allison 3000RDS Automatic Transmission
3600 Gallon Tank

Our tanks are specially designed for Fire Services and designed to meet NFPA and ULC standards. Our semi-elliptical tanks provide the lowest possible center of gravity in accordance with DOT406, CAN / ULC S-515-04, NFPA

In 20 years, no (0%) claim and (0%) repair on our tanks delivered demonstrating the superiority of the product without any hesitation.

HELIE FIRE BODY

CHASSIS SPECIFICATIONS :

-    2017 Freightliner
-    M2-106
-    CUMMINS ISL 350
-    EXHAUST BRAKE
-    ALLISON 3000 RDS AUTOMATIC TRANSMISSION
-    14,700 FRONT
-    40,000 REAR
-    AIR RIDE
-    FULL CHROME ACCESSORIES
-    LUXURY INTERIOR



Aluminum tank is lifetime warranty
(5) Years warranty on emergency lighting
Freightliner medium truck warranty

NFPA/ULC Longitudinal and transverse baffles

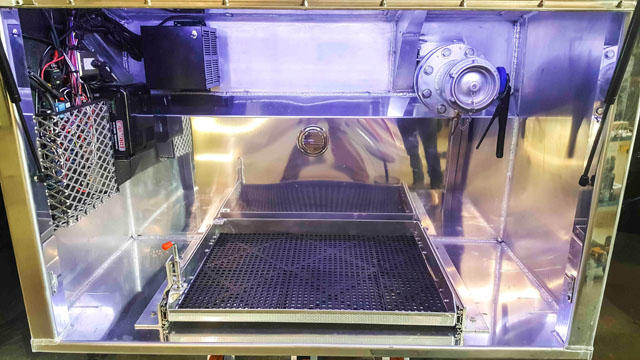

Tank compartments dimensions : Door facing upwards 60 "long 38 "high, 28" deep, 30 degree rear

Two (2) drain installed in the front
Filling 10 "cover installed on the top of the tank
Manhole cover: 20 "


One (1) 10 " discharge valve with actuator
¬One (1) 26 " discharge extension ¬
One (1) 90   degrees elbow for side dump

One (1) 4 " Pre-connect (inlet/outlet) driver side tank compartment
¬One (1) valve 1/4 "to eliminate pressure

One (1) 4 " Inlet at the rear passenger side ¬
One (1) valve 1/4 "to eliminate pressure

One (1) tank 4 '' victaulic with mesh and plug drain
One (1) overflow 6 "pipe with box on top of the tank


LIGHTING PACKAGE :

·         (1) Whelen Justice light bar 62’’
·         (1) Tecniq perimeter light
·         (2) Whelen Strobe
·         (2) Whelen Scene light Series 900
·         (8) Whelen Interception light Series 600
·         (11) Work light
·         LED lighting in tank compartments
·         Witness light for door open
·         Whelen Siren/speaker
·         Whelen console
·         Back up camera with 7’’ screen color/sound





EQUIPMENT :

·        (1) Anode (protect the tank)
·        (2) Hooks front
·        (2) Hooks rear
·        (2) Water indicator (1) Back – (1) Inside cab

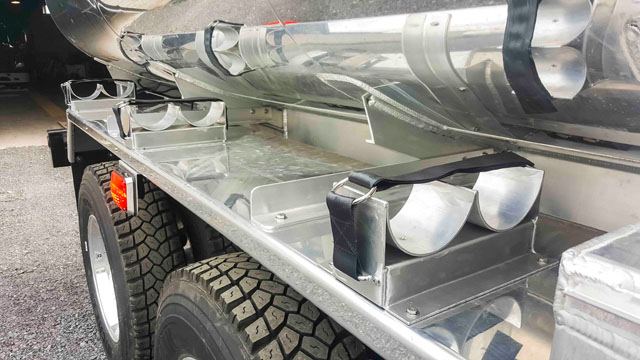

·        (3) Hose suctions holders
·        Kussmaul Auto eject & Air eject
·        Sliding drawer
·        Heater in pump compartment
·        Battery charger + 120V Power outlet
·        Automatic dump discharge system
·        (3) Flares
·        Road triangles
·        Extinguisher

LETTERING :

·         3M Reflective lettering  (Fire department lettering)

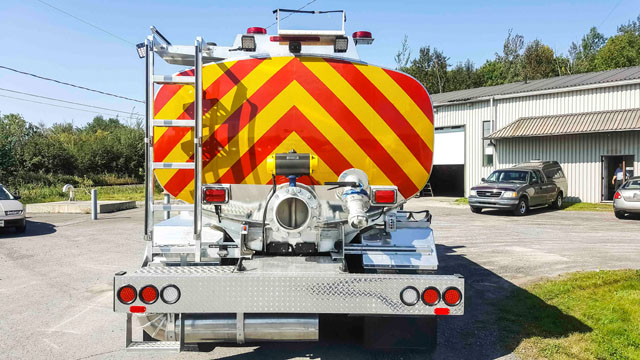

·         Rear back chevron
·         Rear bumper with chevron





Aluminum vs Poly (lifetime warranty) is:
• 2.98 times more dense (g/cm2)
• 62.72 times more elastic (GPA)
• 3.92 times more resistant to high temperature (° C)
• 20.83 times more rigid versus its weight (MN¬m/kg)
• 2.12 times more strong versus its weight (kN¬m/kg)
• 20.0 less fragile times at¬40 ° F and +.
• 1.55 times faster unloading.
• 9.75 times more resistant to pressure from loading
• 6.30 times more elastic (MPa)
• Much safer thanks to its centre of gravity very low more easy maintenance.
• Much easier to repair and maintain.
• Tensile strength of polypropylene is 4,500 psi
• Tensile strength of aluminium is 44,000 psi





Additional equipment not included with purchase.


This fire truck is a very new piece of apparatus, and rare on the used fire truck market today. Feel free to touch base with us to get the full history on this rig, and we will be glad to pass it along, but with minimal time passed since it was produced, this vehicle will have many years remaining to serve at its next fire department!
