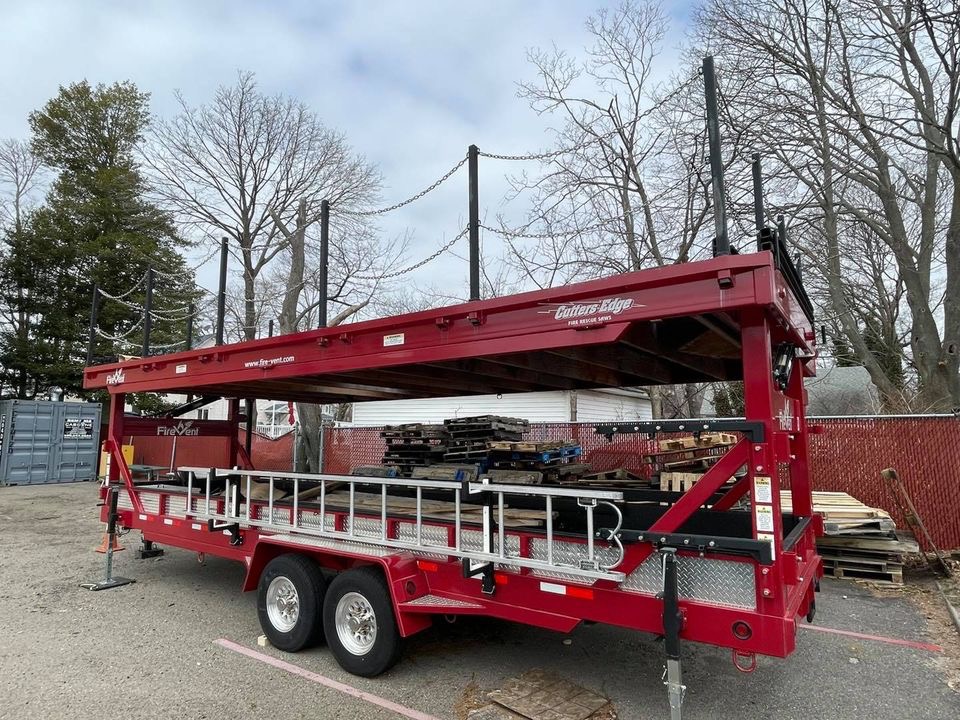

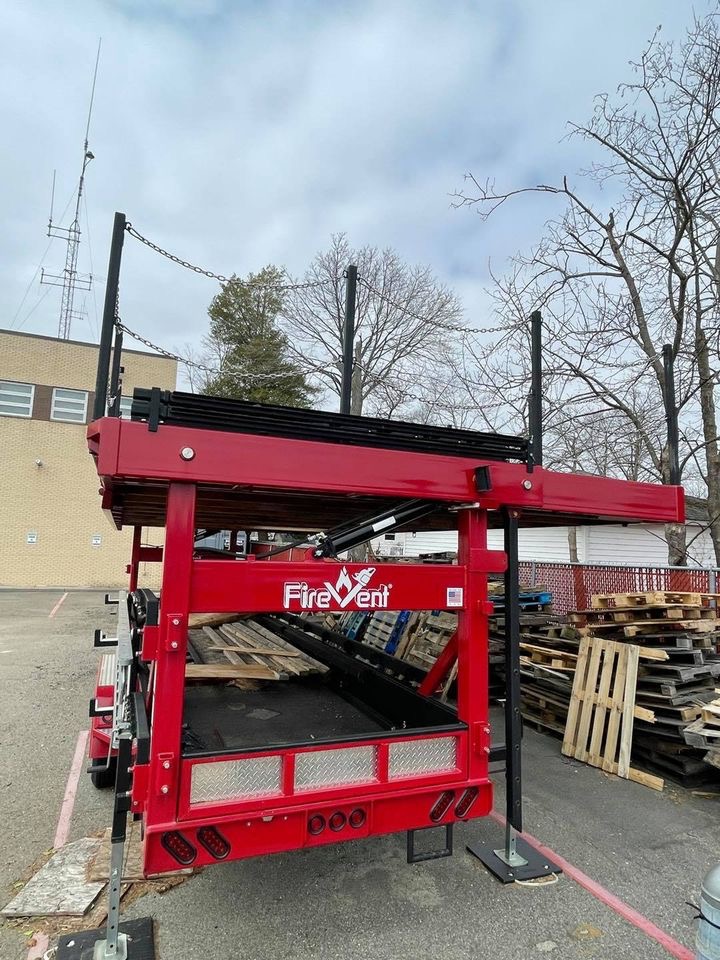

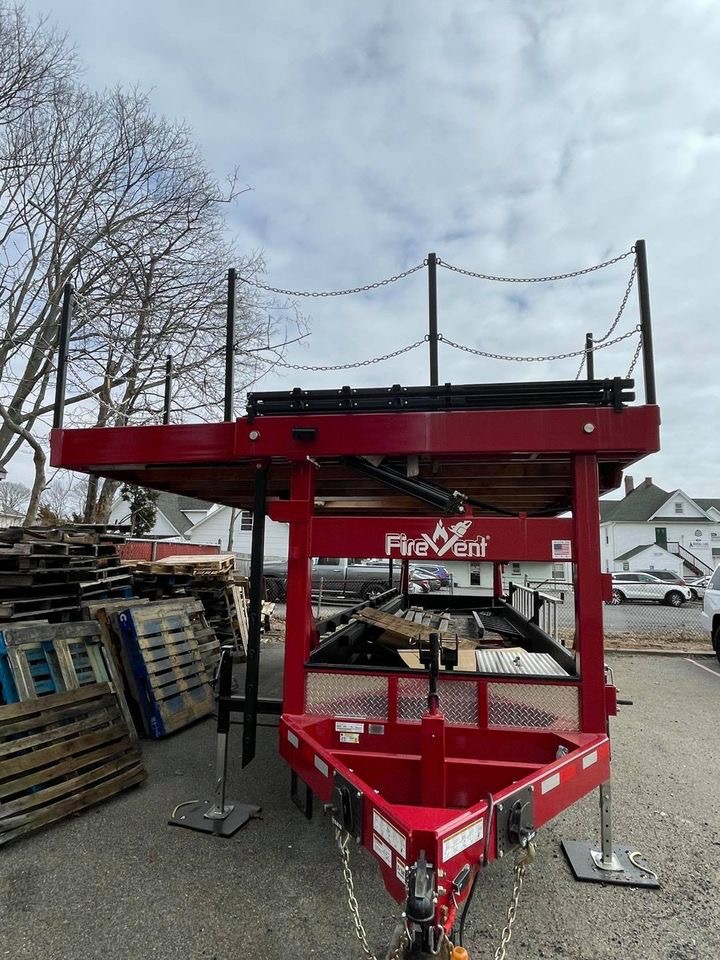

Trailer custom made and integrated with prop.
Aluminum diamond plate sides.
Sprayed on heavy duty “Scorpion” bed liner.
All LED warning and signal lighting.

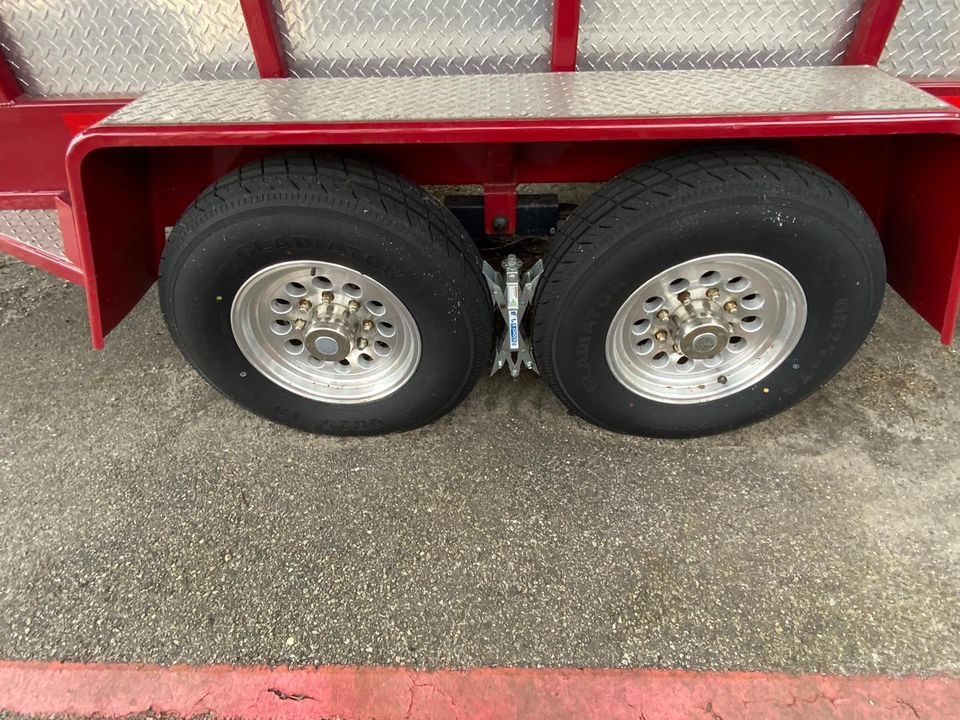

6K tandem axles with electric brakes on each.
Aluminum 8 lug wheels.
Steel belted 10 ply tires.
Spare tire included.

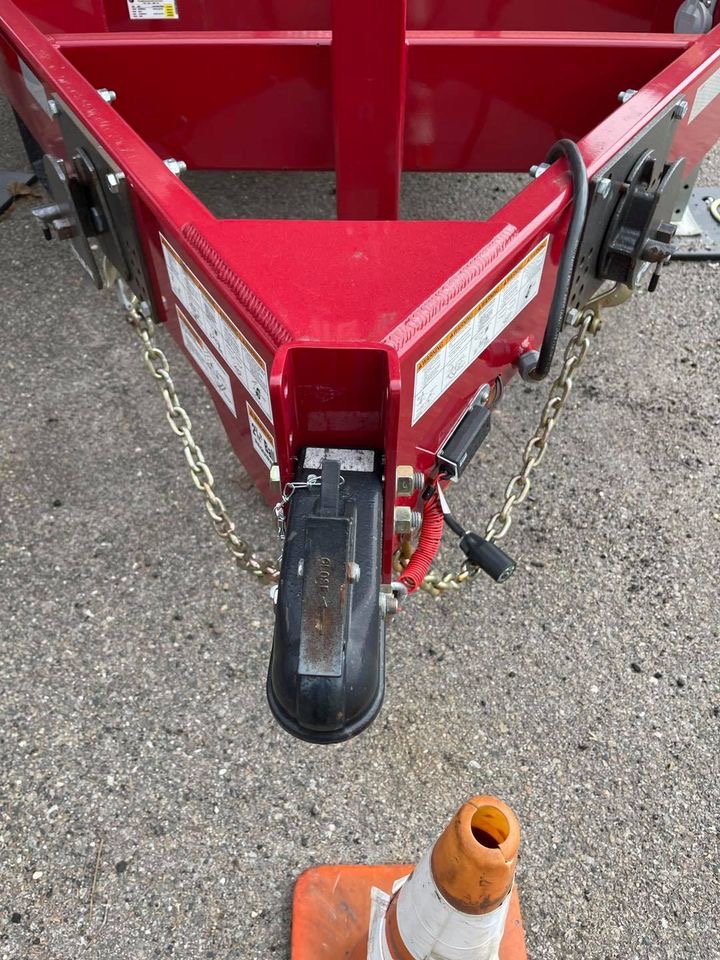

Bumper pull hitch with adjustable height, ball or pintle standard, gooseneck available.
BlueOx SwayPro weight distribution hitch.
7 pin electrical connection to tow vehicle.
12K tongue jack with drop leg, hydraulic tongue jack available.
8K side jacks (outriggers) with drop legs.
110v shoreline built into the frame of trailer
Standard paint color “cobalt red” (custom colors available)
Accessory parts that are attached to the trailer are all powder coated.
“Big Foot” outrigger pads with slid-in storage trays.
Specifications & Features, all models:
Weight unladen approx 9,400lbs.
Load capacity approx 2,600lbs.
Gross weight capacity 12,000lbs
Tongue weight approx 1,000lbs
Overall length 31ft.

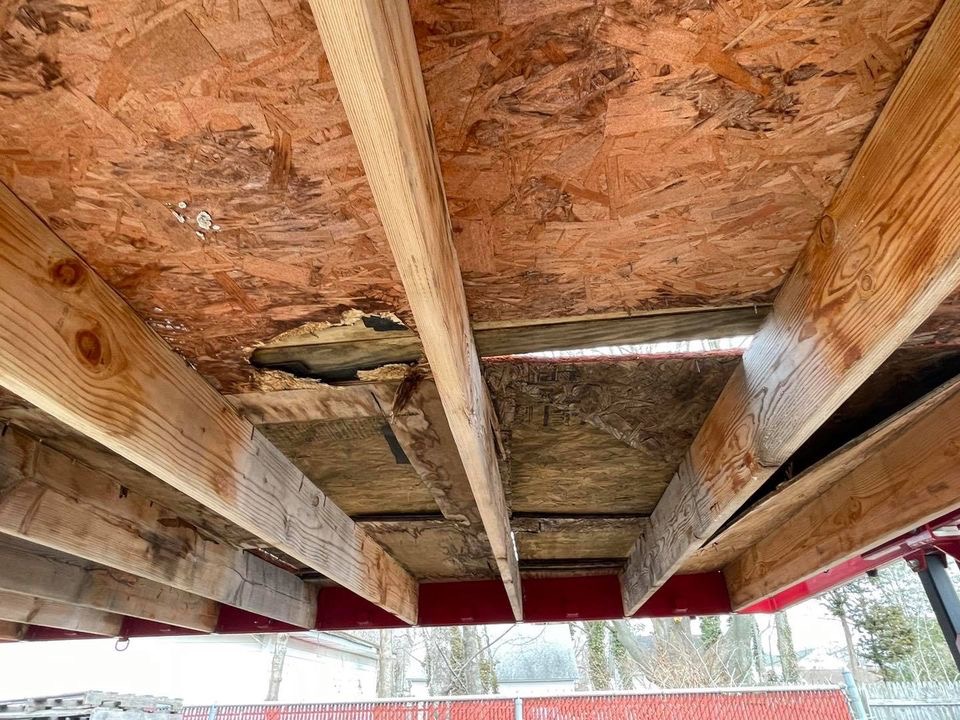

24’x12’ roofing platform
Width- (closed transport position) 8ft.
Height- (closed transport position) 10ft 6in.
Roofing platform height 9ft (flat position)
Rub rail and anchor tie off around the perimeter of platform.

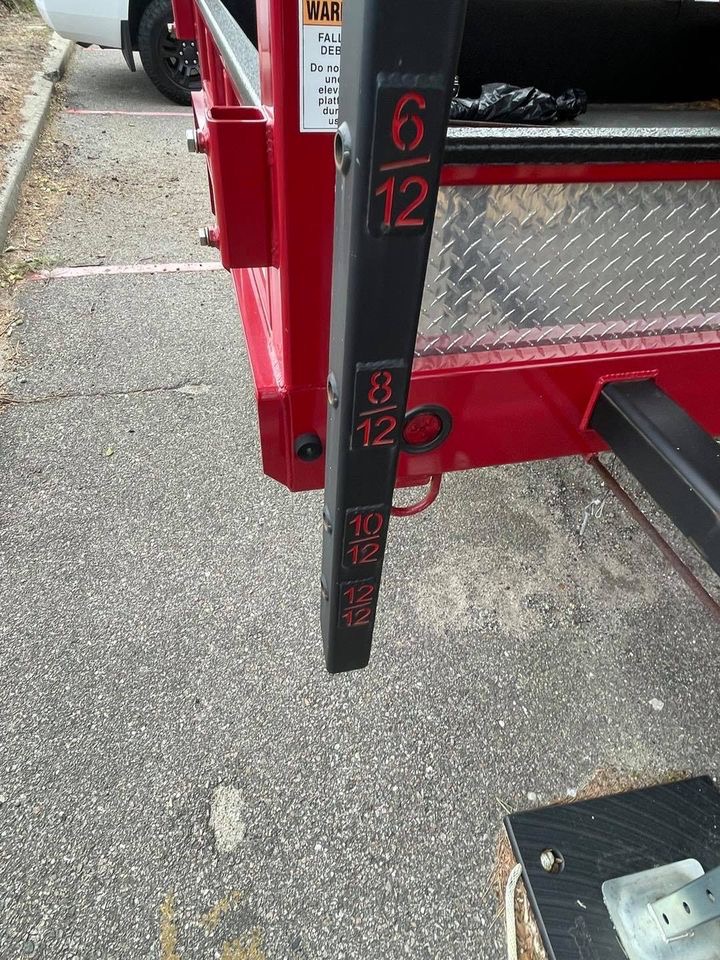

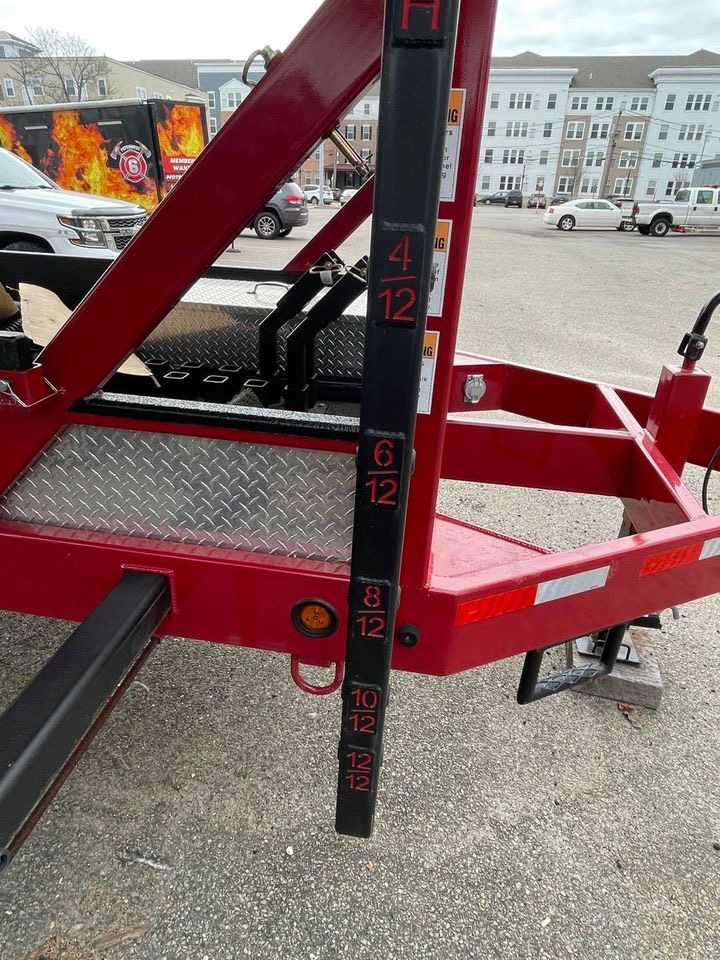

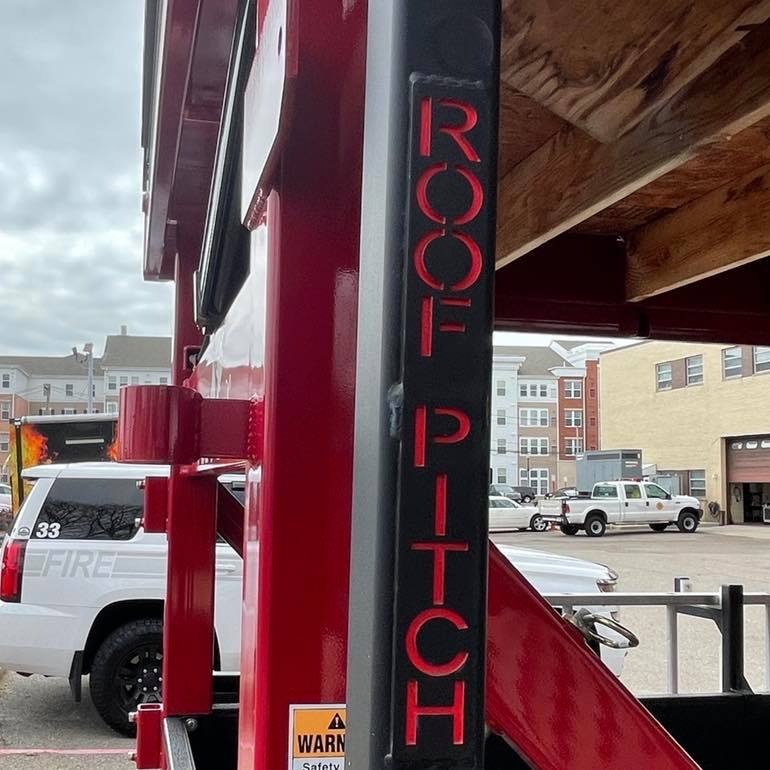

Variable pitch, flat to 12/12 (hydraulically controlled)

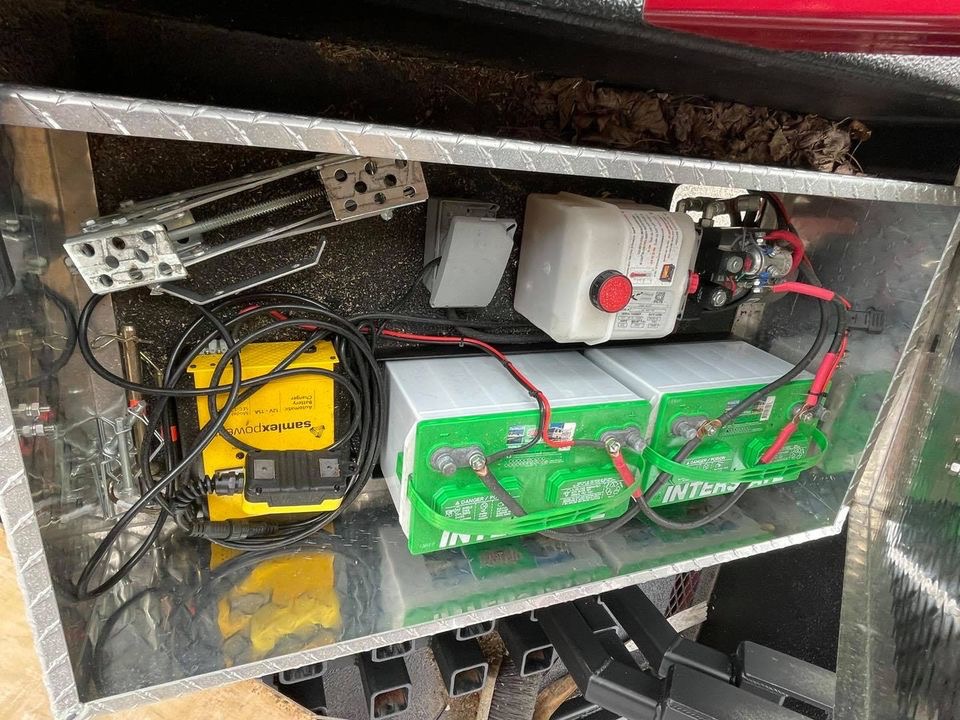

12v hydraulic system standard.
Heavy-duty 3000 psi dual hydraulic cylinders.
4500 psi hydraulic hoses throughout.
Equipped with Bridon “Load Control” hydraulic valves.

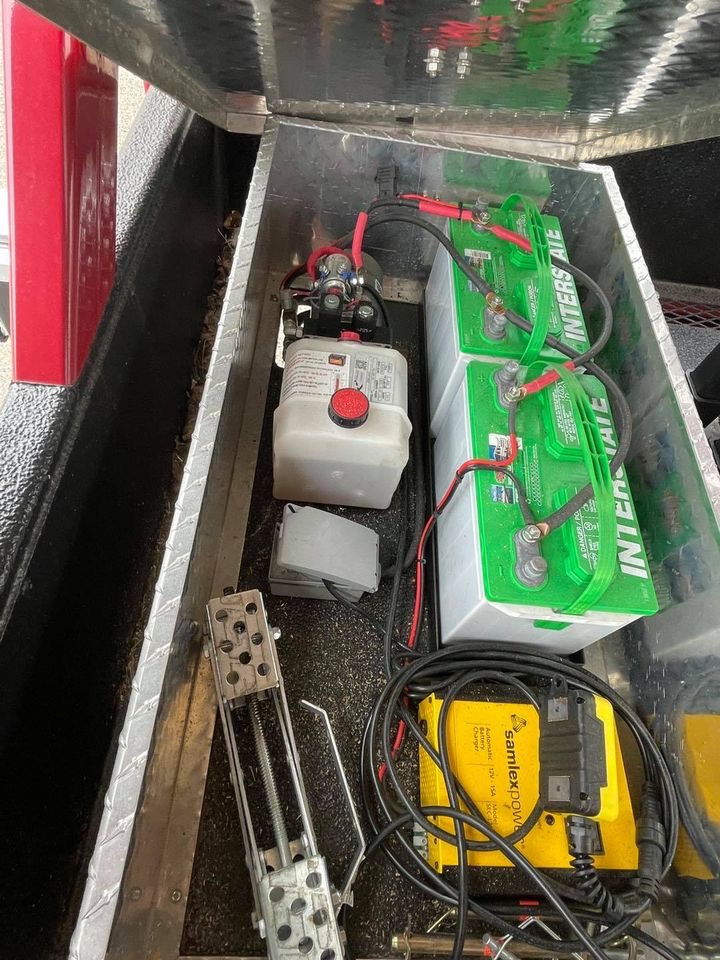

Diamond plate storage box for hydraulic pump standard, built-in lockable storage compartment available.
Safety post/chain system around the perimeter of roofing platform.
Engineered for a live load of 1,800 lbs. on roofing platform at any pitch.
Engineered for wind load of 60 mph at any pitch
Owned by Volunteer Fire Department
Unit is in excellent condition- no rust, dents or dings and it has been lightly used.
