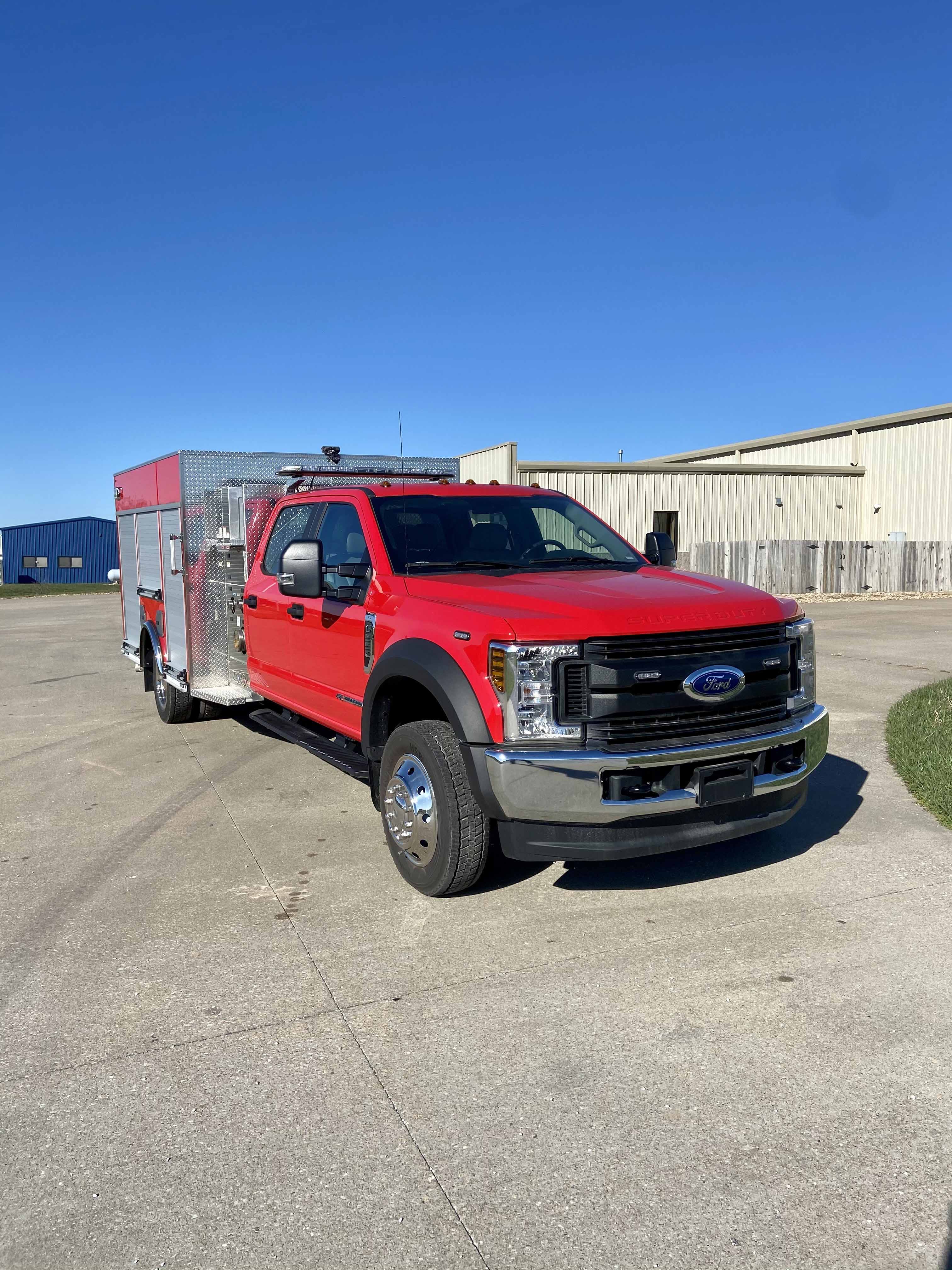

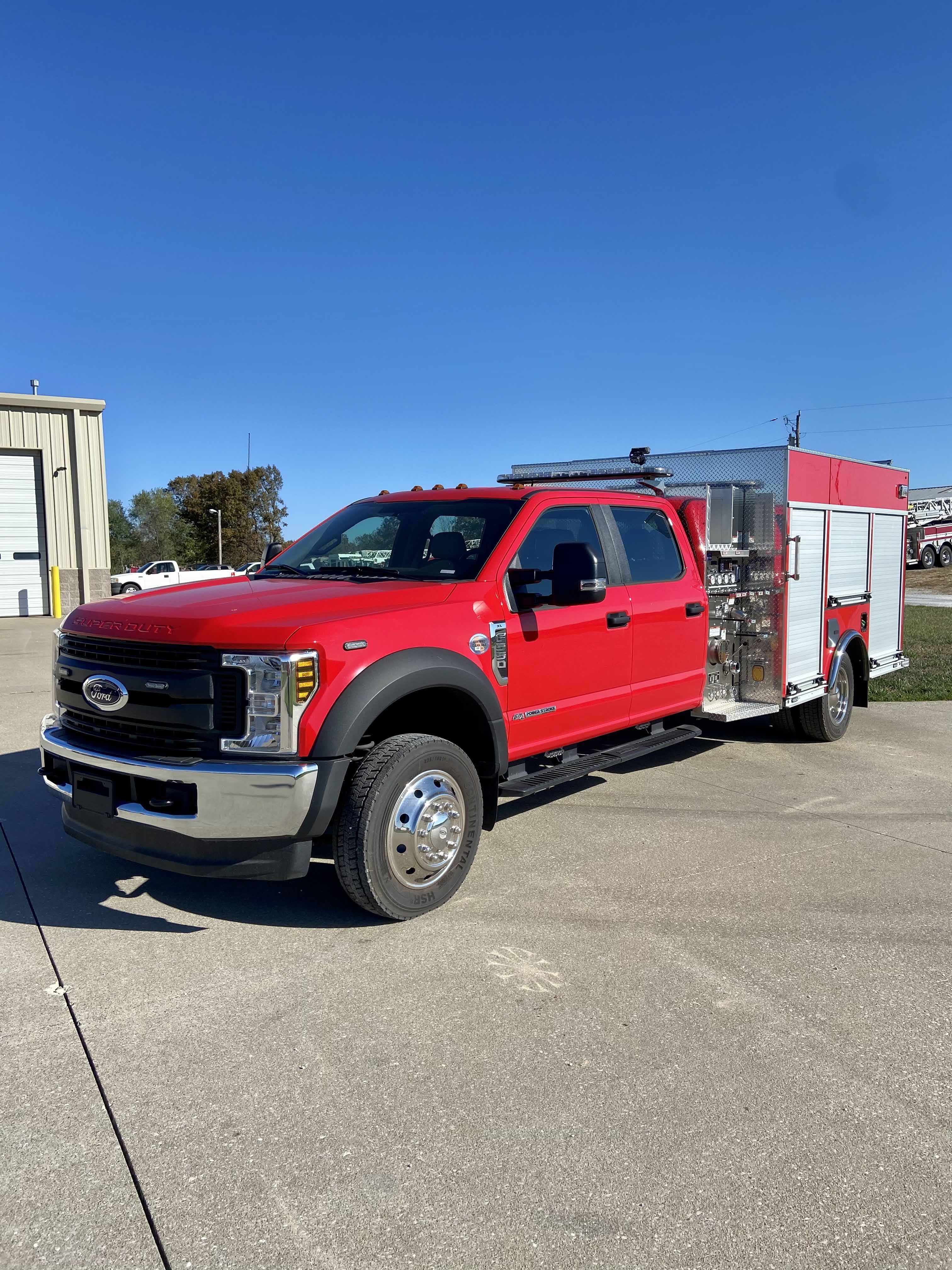

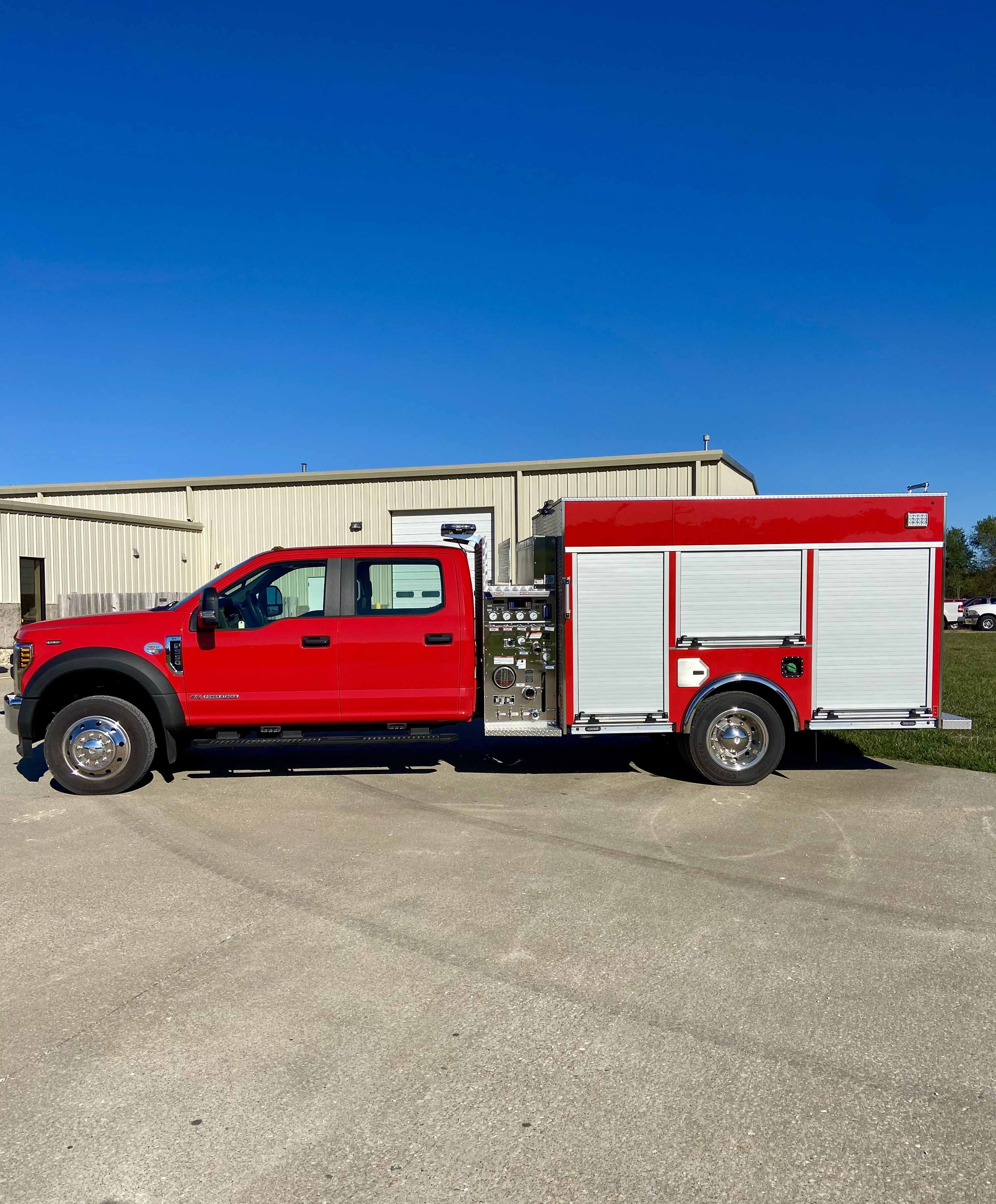

2019 Ford VanMor Mini Pumper

Sold and Delivered

2019 Ford VanMor Mini Pumper

Truck Type	Used Pumpers and Engines;Used Brush Trucks, Quick Attacks & Minis
Manufacturer
Year Built	2019
Mileage
Location	USA - Midwest
Stock #	14151
Price	Sold and Delivered
Rent	$/mo

Find OutMore About This Truck

Thank you for your interest in the 2019 Ford VanMor Mini Pumper! Fill out the form below and we'll immediately start the process to get you more information.

First Name*

Last Name*

Email Address*

Phone

Fire Department

Select Country

Select State

Select Purchase Timeframe

What's the price? Where is this truck located? Can you send me more pictures? Why are you selling the truck? Are there any known issues with the truck? Is financing available? Do you accept trade ins?

Or Call 256-776-7786

Truck Details

General Specs

Stock#: 14151

2019

VanMor Fire Body

XL Ford Chassis

4 - Door Commercial

Wheelbase: 203"

GVWR: 19,500

PowerStroke V-8 Diesel Engine

Automatic Transmission

Additional equipment not included with purchase unless otherwise listed.

Pump - Tank

Hale 1250 GPM Pump

320 Gallon Polypropylene Tank

Electrical - Lighting

Options

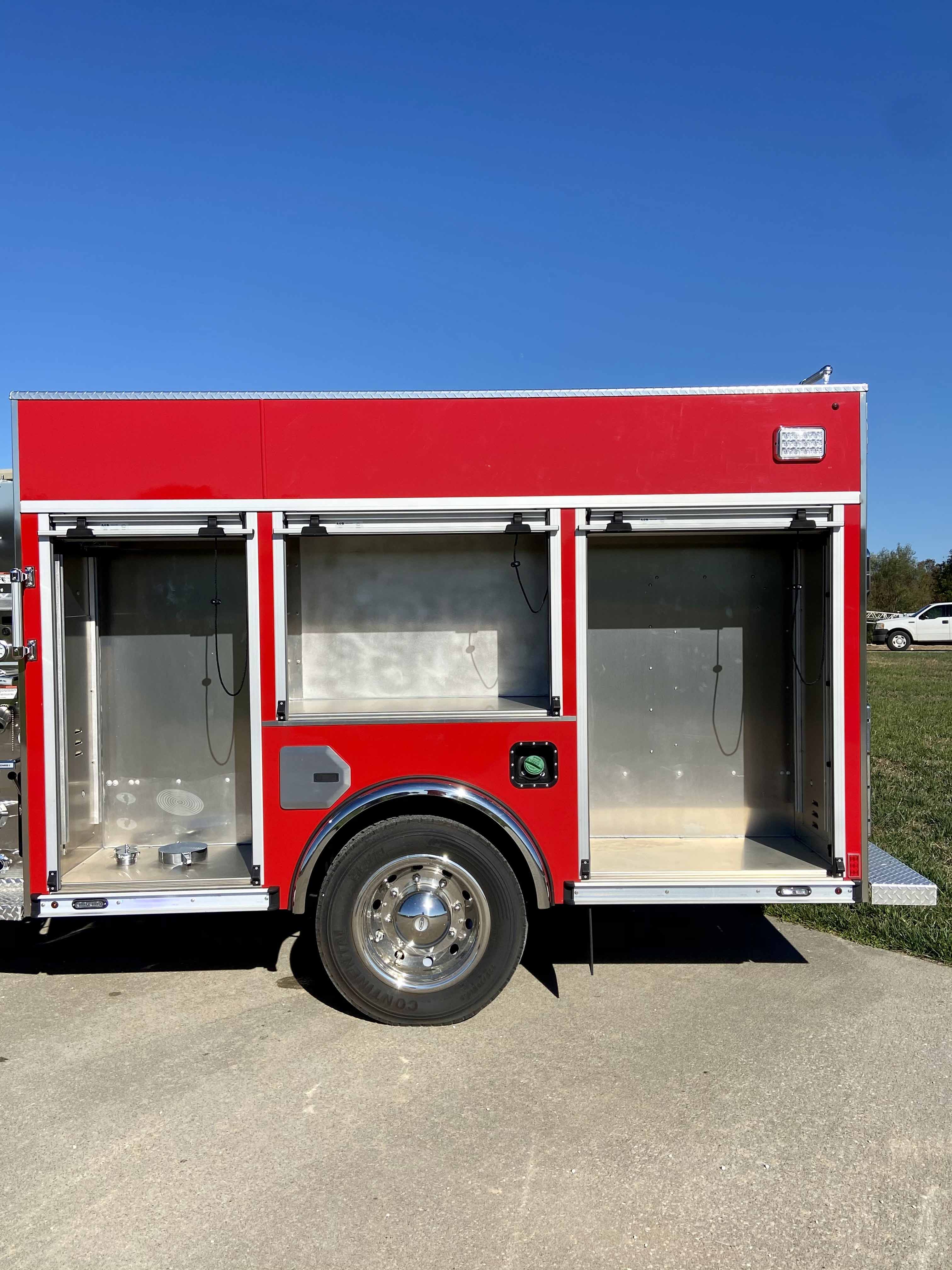

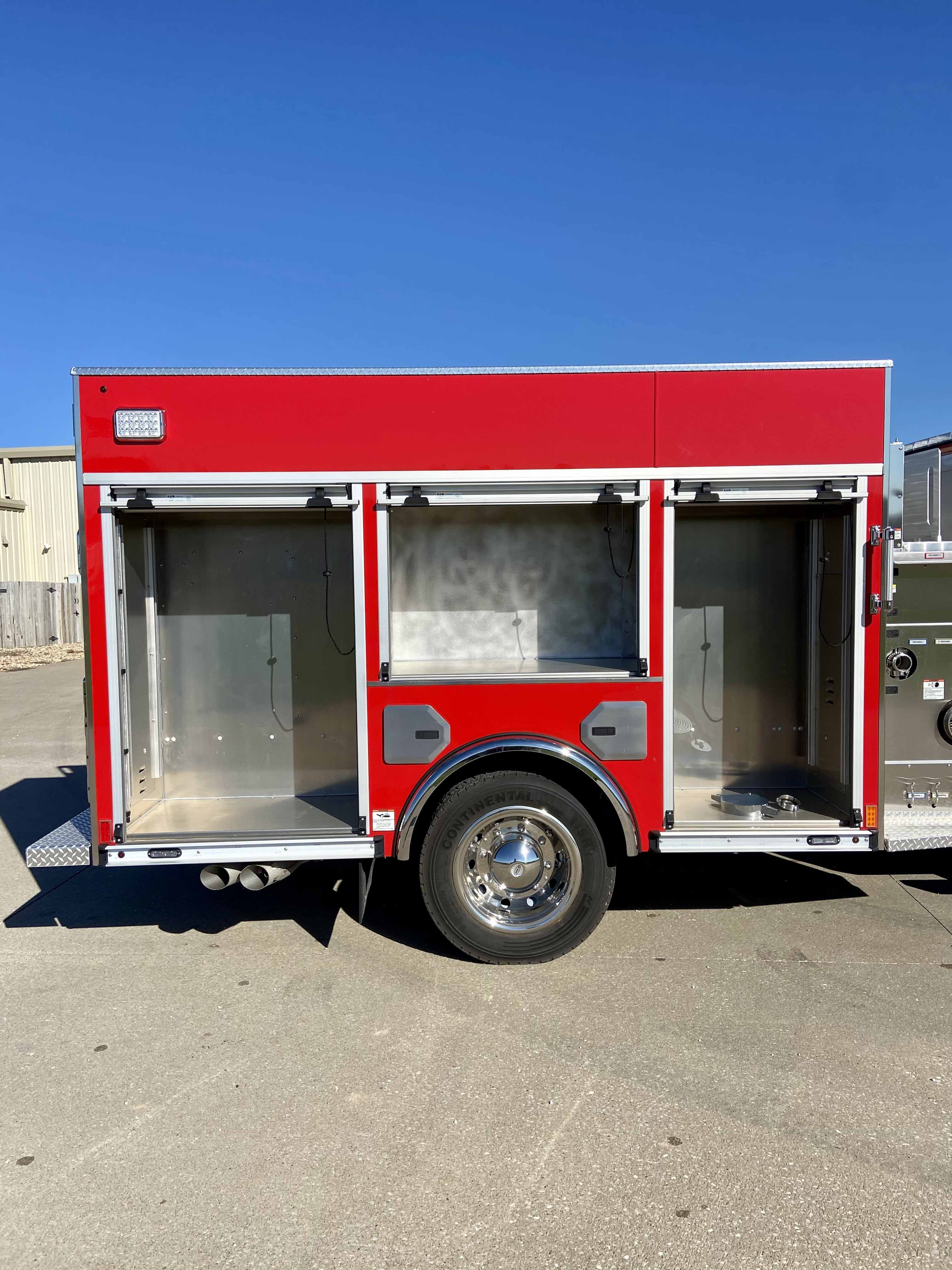

BODY OPTIONS
Roll-Up Door Options - ROM:
Satin Finish - Standard
Hosebed Divider
Step, chromed folding with LED light (ea) - left side of B-1 for hosebed access
Grab Rail - 12" - Extruded aluminum (ea) - top of body, left rear - IATS
Grab Rail - 36" - Extruded aluminum (ea) - ILOS - rear of body -(1) left, (1) right; one below hosebed
SCBA Storage Tubes in Wheelskirt Panel - Single (ea) - Caution: some older & 1-hr bottles may not fit
depth

PUMP MODULE & OPTIONS
PUMP MODULE: 1250 GPM Mid-ship Pump with 24"W aluminum. Includes: Hale DSD midship 750-
1500 mid-ship pump; L gearbox. Interlock module. ESP-12 priming system w/PVF (drive mount). 6" NST suction
left and right side with chrome steamer cap. Alloy nodes (2) suction, (1) discharge. TRV thermal relief valve. 2.5"
NST intake relief valve. Akron valves. #1- 2.5" LH Front discharge, push-pull. Auxiliary 2.5" LH Rear intake
valve with swing handle. #2 - 3.0" RH Forward discharge with 3" NH, push pull. #3 - 3.0" RH Rearward w/ 3.0" NH, push pull. 3" tank-to-pump, push pull; 2.0" tank fill, 90 degree VIC push pull. 2.5" hosebed discharge, push-pull. (2) cross-lay discharges, push pull. Port on manifold for jump line or hose reel (not both). Port on manifold for deck gun. Lift-up drain handles. 2.5" gauges. Sentry govenor with integral push-button throttle control. ITL40 blue water level gauge. 24"W top-mount aluminum pump module with with running boards both side (no tray); 1.5" double-stack cross-lays (2) (no dunnage storage); bright treadplate front body panel; 14 ga. brushed stainless steel driver and officer side pump panels (hinged on right side); (2) cross-lays top of module
Pump Module Warranty: (2) yrs parts and labor, parts only for years 3-5).
WATER TANK: Polyethylene - 320 gallons (1135.6L) water; 10” x 10” x 10” fill tower with hinged lid;
3.0” straight overflow vent pipe; 1.5” FNPT tank fill port; 1.5” FNPT tank drain port; 3.0” FNPT tank suction port;
foam fill tower and pressure release vent.

Paint and Graphics Options
Body Color: match Ford Race Red

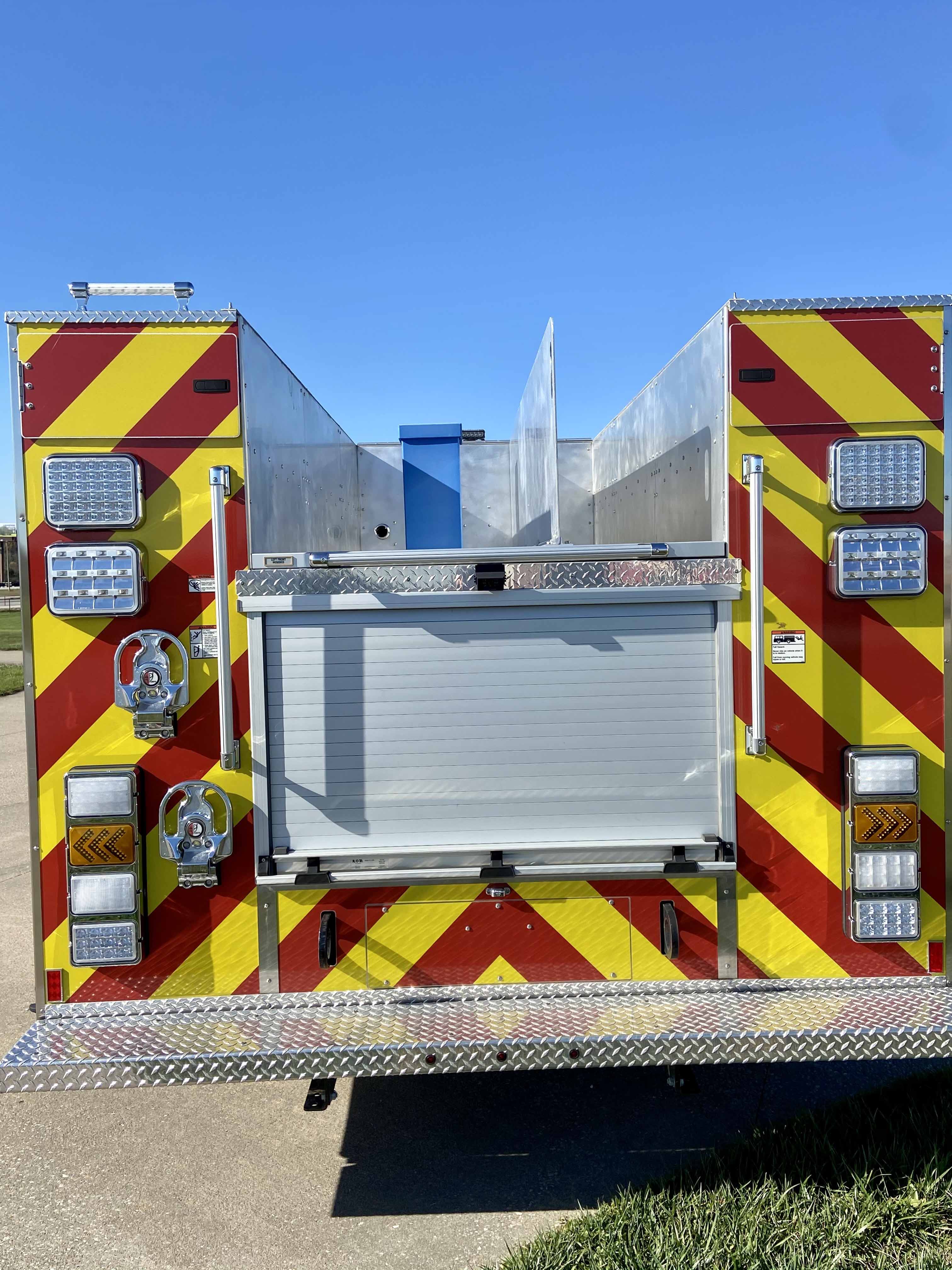

Chevron - single printed sheet on rear body (excluding doors)
Chevron stripping on lower interior cab door panels
Red/clear reflective stripping in lower body rubrails

12VDC Electrical Options
Multiplexed Electrical System - Standard Package: INCLUDES: Multiplexed electrical system with digital
rocker switches; water-resistant harnesses with enhanced Deutsch connectors at each drop location. LED body marker lights with corner reflectors. 30-amp power connection block in rear body for connection of reel rewind motor. 30-amp power connection in console with (8) fused terminals and grounding block for subsequent installation of radios, etc. Console - 30"L between seats - black powdercoated aluminum - knock-outs for radio, siren, switch panel, blank. (2) cupholders; rear storage box with latched lid. (2) USB ports. Back-up alarm. License Plate Mounting with (2) nutserts and shielded LED Light. Compartment LED strip lights angled inward for full compartment illumination above and below shelving. Ground Lights - (2) under rear step bumper. LED door ajar lamp on top of console. LED body marker lights. Taillights - 4 -cluster LED with chromed housing: (2) red stop/tail; (2) backup; (2) amber arrow; (2) red Lower Zone C warning. Rear Scene/Work Lights - (2) Whelen C9SL with C9FC chrome flange and manual activation. Back-up Alarm. Camera, rearview with separate 5.6" monitor, swivel mounted on console. Battery Charger - minimum 40-amp with Auto-Shutdown and Auto Battery Manager. Shorepower - Kussmaul Super Auto-Eject 20-amp. Cab Dome Lights - Ford OEM

WARNING LIGHTS Standard Packages
All lights include chrome flanges, Deutsch weatherproof connectors and loomed harnesses. Lens may be
red, white and amber without additional cost. Other colors or combinations of colors may incur addtional cost. Includes light bar mounted on front of body. Specify lens and LED color. Federal Packages BTO only. Some colors or combinations of colors may result in cost adjustment. Select lightbar mounting option separately under
Warning Light Upgrades.
Whelen Rescue Package 1 - Basic - includes: JE2NFPA 56" Light Bar mounted on front of body;
50R03ZCR (2) in grille; 50R03ZCR left and right cab fenders; ION-TLIR fore and aft of left and right rear wheels in rub rails; C-6LR upper left and right side of body at rear (2); C6LR upper left and right rear (2). All lights include chrome flange.

AUDIBLE WARNING DEVICES
Siren - Whelen 295SLSA1
Speaker - Whelen SA314A - behind grille

Apparatus Information

This fire truck is a very new piece of apparatus, and rare on the used fire truck market today. Feel free to touch base with us to get the full history on this rig, and we will be glad to pass it along, but with minimal time passed since it was produced, this vehicle will have many years remaining to serve at its next fire department!
