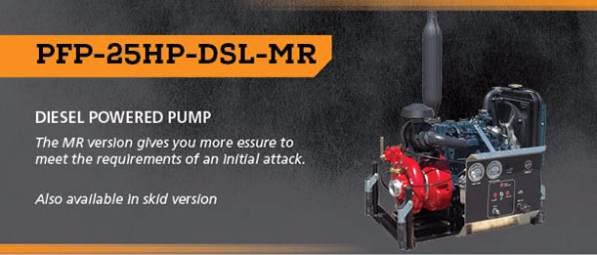

Kubota 25HP Diesel Powered Pump
**Ask More Questions About This Truck**
**Ask More Questions About This Truck**
Truck Details
Kubota 25HP Diesel Powered Pump
etc. Chassis
Diesel Engine
ENGINE SPECIFICATIONS
• Kubota 25hp at 3600 RPM, water cooled engine.
• 3-cylinder diesel engine
• Electric start.
• 6 gallon (22 l) detachable fuel tank.
PUMP UNIT SPECIFICATIONS
• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impellers.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift.
• One 1 ½” (38 mm) delivery outlet.
• One 2 ½ ” (65 mm) suction inlet.
DIMENSIONS
Length : 33” (838 mm);
Width : 26” (660 mm);
Height : 35” (889 mm).
Weight : 320 lbs (145 kg).
CONTROL PANEL
• Engine start/stop switch.
• Throttle control lever.
• Operating panel light.
• Pilot lights.
• Pressure gauge.
• Vacuum pressure gauge.
PERFORMANCE
305 GPM (1154 LPM) @ 10 PSI (0.68 bar)
300 GPM (983 LPM) @ 50 PSI (3.45 bar)
225 GPM (794 LPM) @ 100 PSI (6.89 bar)
140 GPM (491 LPM) @ 150 PSI (10.34 bar)
100 GPM (189 LPM) @ 175 PSI (12.07 bar)
Your pump comes with a 3 year limited warranty & full year warranty on all mechanical components.
Additional equipment not included with purchase.
This fire truck is a very new piece of apparatus, and rare on the used fire truck market today. Feel free to touch base with us to get the full history on this rig, and we will be glad to pass it along, but with minimal time passed since it was produced, this vehicle will have many years remaining to serve at its next fire department!
Stock#: 08932
etc. Chassis
Diesel Engine
ENGINE SPECIFICATIONS
• Kubota 25hp at 3600 RPM, water cooled engine.
• 3-cylinder diesel engine
• Electric start.
• 6 gallon (22 l) detachable fuel tank.
PUMP UNIT SPECIFICATIONS
• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impellers.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift.
• One 1 ½” (38 mm) delivery outlet.
• One 2 ½ ” (65 mm) suction inlet.
DIMENSIONS
Length : 33” (838 mm);
Width : 26” (660 mm);
Height : 35” (889 mm).
Weight : 320 lbs (145 kg).
CONTROL PANEL
• Engine start/stop switch.
• Throttle control lever.
• Operating panel light.
• Pilot lights.
• Pressure gauge.
• Vacuum pressure gauge.
PERFORMANCE
305 GPM (1154 LPM) @ 10 PSI (0.68 bar)
300 GPM (983 LPM) @ 50 PSI (3.45 bar)
225 GPM (794 LPM) @ 100 PSI (6.89 bar)
140 GPM (491 LPM) @ 150 PSI (10.34 bar)
100 GPM (189 LPM) @ 175 PSI (12.07 bar)
Your pump comes with a 3 year limited warranty & full year warranty on all mechanical components.
Additional equipment not included with purchase.
This fire truck is a very new piece of apparatus, and rare on the used fire truck market today. Feel free to touch base with us to get the full history on this rig, and we will be glad to pass it along, but with minimal time passed since it was produced, this vehicle will have many years remaining to serve at its next fire department!
Stock#: 08932
General Specs
- Stock#: 08932
- 2017
- etc. Chassis
- Other
- Diesel Engine
- ENGINE SPECIFICATIONS
• Kubota 25hp at 3600 RPM, water cooled engine.
• 3-cylinder diesel engine
• Electric start.
• 6 gallon (22 l) detachable fuel tank.
Pump
- PUMP UNIT SPECIFICATIONS
• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impellers.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift.
• One 1 ½” (38 mm) delivery outlet.
• One 2 ½ ” (65 mm) suction inlet.
DIMENSIONS
Length : 33” (838 mm);
Width : 26” (660 mm);
Height : 35” (889 mm).
Weight : 320 lbs (145 kg).
CONTROL PANEL
• Engine start/stop switch.
• Throttle control lever.
• Operating panel light.
• Pilot lights.
• Pressure gauge.
• Vacuum pressure gauge.
PERFORMANCE
305 GPM (1154 LPM) @ 10 PSI (0.68 bar)
300 GPM (983 LPM) @ 50 PSI (3.45 bar)
225 GPM (794 LPM) @ 100 PSI (6.89 bar)
140 GPM (491 LPM) @ 150 PSI (10.34 bar)
100 GPM (189 LPM) @ 175 PSI (12.07 bar)
Electrical
Options
- Your pump comes with a 3 year limited warranty & full year warranty on all mechanical components.
Apparatus currently resides in
Canada
$12,250
