Vanguard 23HP Gas Powered Pump | Used Truck Details

Brindlee Mountain Fire Apparatus

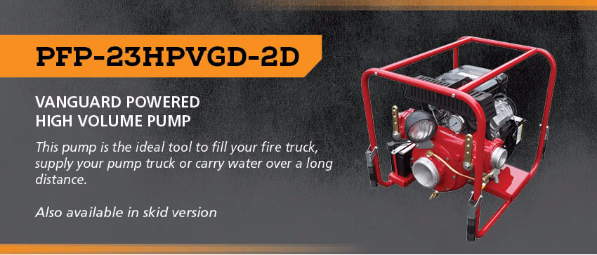

Vanguard 23HP Gas Powered Pump
Truck
Vanguard 23HP Gas Powered Pump
$4,690

For Additional Information,
Contact Brindlee Mountain at:

Toll free: 866.285.9305
Local: 256.498.0188

Apparatus currently resides in
Canada

Vanguard 23HP Gas Powered Pump

**Ask More Questions About This Truck**

**Ask More Questions About This Truck**



Truck Details

Vanguard 23HP Gas Powered Pump
etc. Chassis
Gas Engine
ENGINE SPECIFICATIONS

Vanguard, model 380000, air cooled engine
V-Twin Cylinder, 4-Stroke gasoline engine
Electric start with recoil start as backup
6 Gallons (22L) detachable fuel tank

PUMP UNIT SPECIFICATIONS

C.E.T single stage centrifugal pum
Pump body made from high resistance Aluminum alloy
Bronze Impeller
Mechanical shaft sea
Exhaust priming system, guaranteed up to 20' (6 meter) lift
One 2'' 1/2 (65mm) delivery outlet with Fire type-swing-out valve
One 4''  (100mm) suction Inlet

DIMENSIONS

Length : 21'' 1/4 (540mm)
Width : 26'' 1/2 (673mm)
Height : 24'' (610mm)
Weight : 182.4 LBS (83KG)

INCLUDED ACCESSORIES

Pressure gauge
20AMPS alternator
12-V Battery
Swivel spotlight
Low oil alert

PERFORMANCE

MAX FLOW : 550 GPM
MAX PRESSURE : 115PSI
430GPM @ 25 PSI
310GPM @ 50 PSI
110GPM @ 100 PSI


Your pump comes with a 3 year limited warranty & full year warranty on all mechanical components.

Additional equipment not included with purchase.


This fire truck is a very new piece of apparatus, and rare on the used fire truck market today. Feel free to touch base with us to get the full history on this rig, and we will be glad to pass it along, but with minimal time passed since it was produced, this vehicle will have many years remaining to serve at its next fire department!




Stock#: 08928

General Specs

  • 2017.0
  • etc. Chassis
  • Other
  • Gas Engine

Pump

  • false

Electrical

  • false

Options

Note: Click on the linked heading text to expand or collapse accordion panels.

Apparatus currently resides in
Canada



$4,690



For Additional Information,
Contact Brindlee Mountain at

Toll free : 866.285.9305
Local : 256.498.0188 or
**Ask More Questions About This Truck**



Seller's Information:

"This is a brand new unit! New chassis, pump and LED lighting as well!"

$4,690



For Additional Information,
Contact Brindlee Mountain at

Toll free : 866.285.9305
Local : 256.498.0188 or
