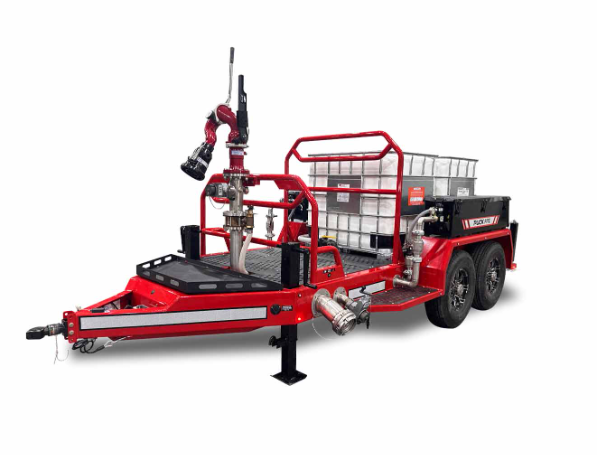

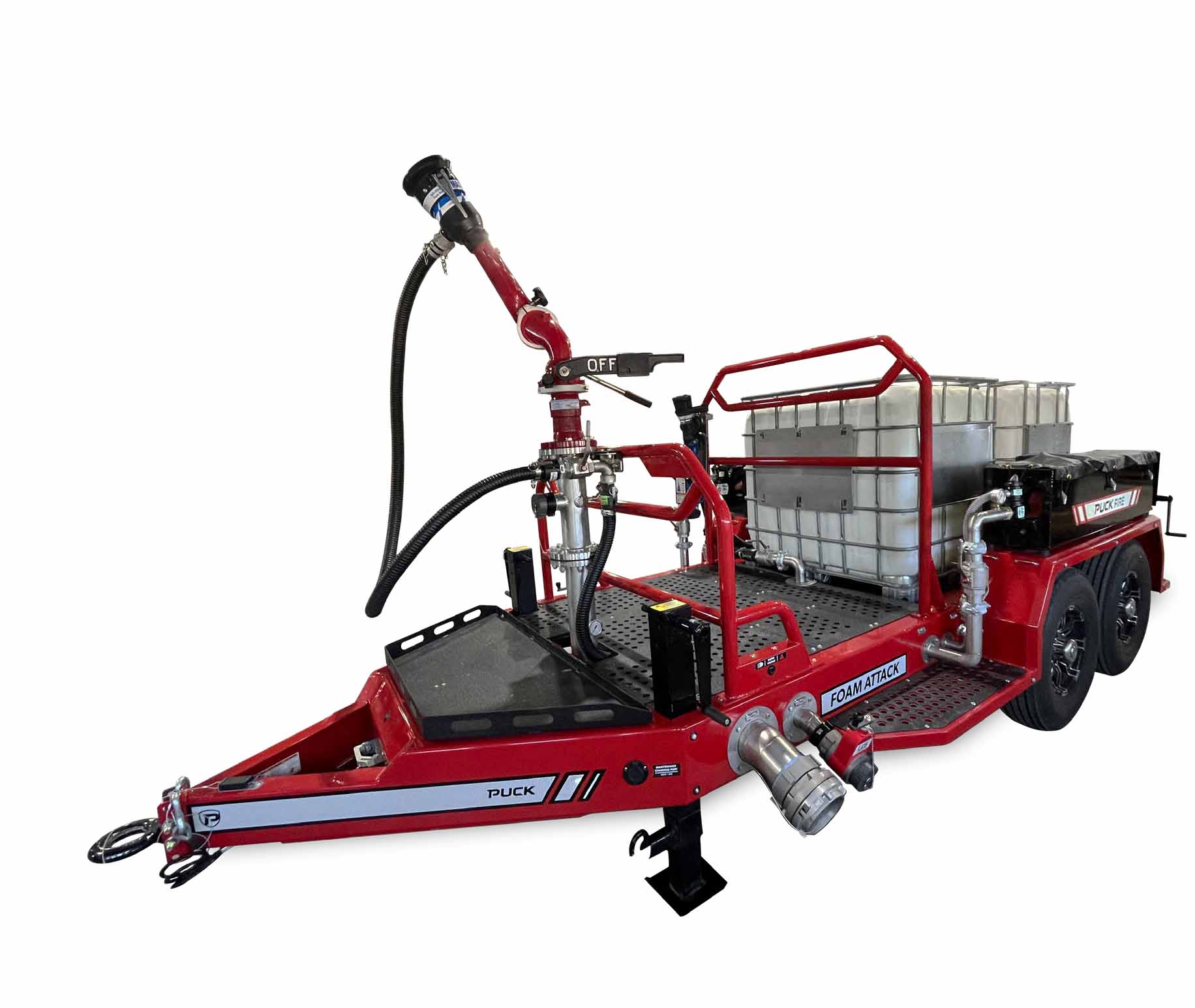

Puck Fire Foam Attack Tote Trailers feature a fully

engineered and welded chassis built for reliability,

safety, stability, and ease of use and are available in dual

or triple tote configurations. A stainless-steel waterway

provides corrosion resistance when using modern foam

concentrates, increasing the service life of the trailer.

A true 5” waterway allows multiple foam concentrate

outputs to be used simultaneously, allowing knockdown

and vapor suppression efforts for increased operator

safety. The trailer design features up to four foam eductor

locations, one on each fender mounted hose bin, a 2.5”

front discharge and the foam educting nozzle on the riser

pipe. This increases the versatility of the trailer to handle

a multitude of foam deployment situations. Built in hose

bins hold up to 200’ of 1.75” or 2.5” hose or 100’ of 5”

LDH supply hose to quickly establish foam suppression

or water supply on scene. An optional lighting package

illuminates the work platform and area around the trailer

for increased operator safety. Puck Foam Tote Trailers

are built in the U.S.A. and American Made Tough.

CHASSIS

• Dual axle configuration and heavy-duty C-channel chassis

designed for easy transport

• Dual front and rear jacks provide a level and stable

working surface

• Increased operator safety via integrated waterway under

operator’s platform, maintaining a clean platform

• Built in lockable toolbox for secure

storage of adapters, fittings and tools

WATERWAY

• Full stainless-steel pipework and connections resist corrosion and

increase service life

• Dual 5” Storz inlet connections and dual 2.5” NH inlet connections

with 4” riser pipe produces flow rates up to 2,000 GPM

• Easy waterway drain out and cleanup with 5 PSI auto drains

FOAM CONCENTRATE SUPPLY SYSTEM

• Foam concentrate manifold equally distributes concentrate to

multiple discharges simultaneously

• Up to four concentrate discharge options provide maximum

versatility

• Options for two fender mounted preconnected foam eductors, 2.5”

riser pipe and main nozzle foam discharge location requirements

HOSE BED STORAGE

• Up to 200’ of 1.75” or 2.50” lay flat hose storage per box provide

initial suppression capabilities

• Up to 100’ of 5” LDH lay flat hose capacity, providing a rapid

deployment when establishing initial water supply

CHASSIS CONFIGURATIONS

• Dual Tote- Two 275 or 330 gallon tote capacity

• Triple Tote- Three 275 or 330 gallon tote capacity

• Dual Agent- One 275 or 330 gallon tote with dry chemical skid

• Dual Agent- Two 275 or 330 gallon totes with dry chemical skid

OPTIONAL EQUIPMENT

• 250-2,000 GPM manual adjustment or fully self-contained

Remote-Controlled monitor and nozzle options

• 60, 95, 125, 250, and 350 GPM attack line eductors

• Dry chemical skid compatible

• Auxiliary power package

• TFT BlitzFire® storage

• Vinyl tarp cover
