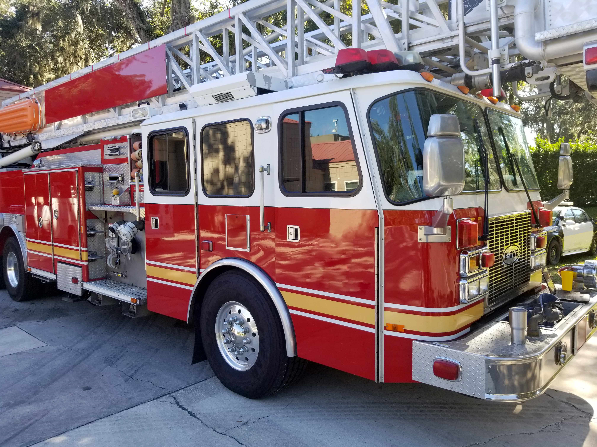

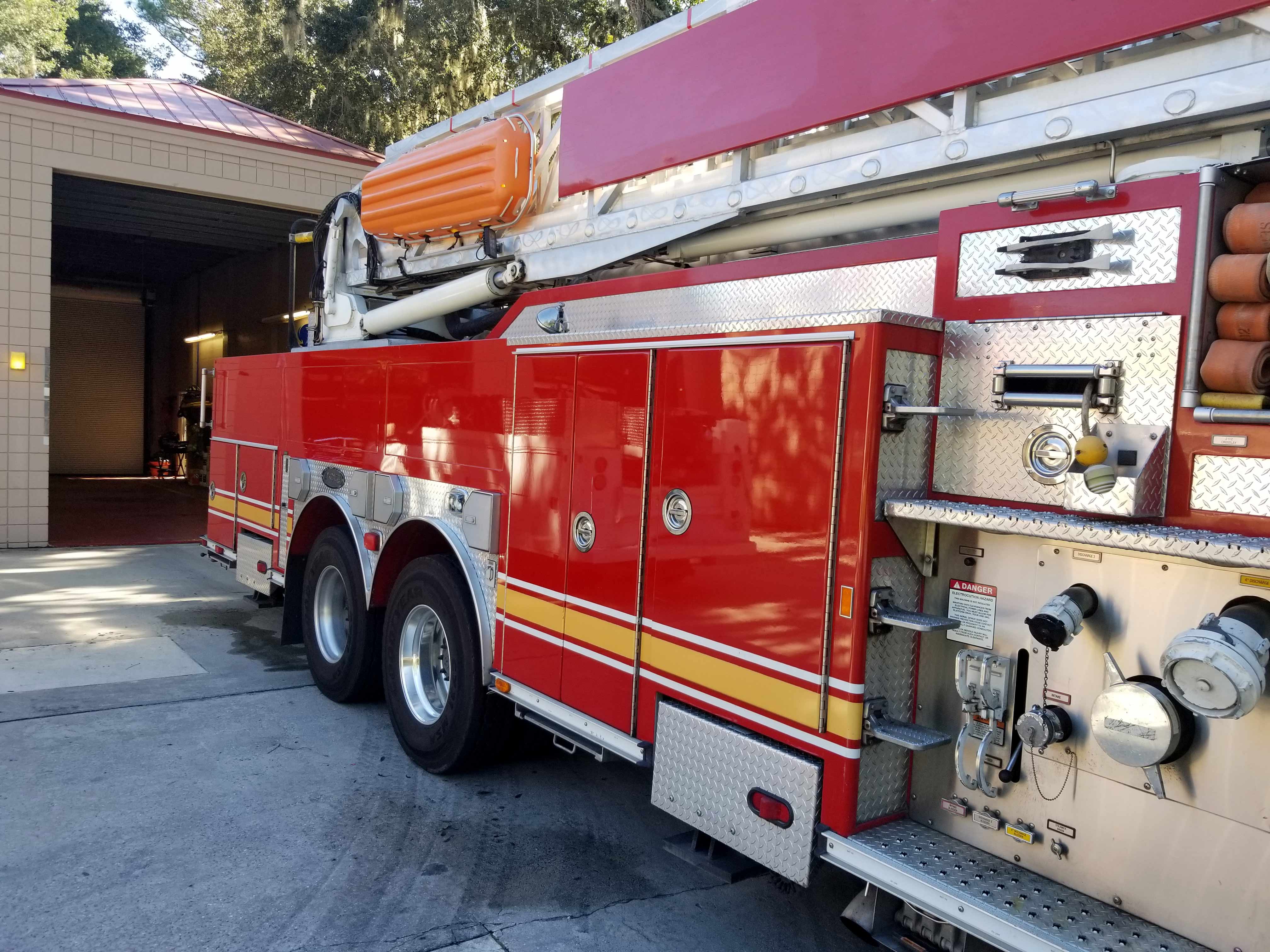

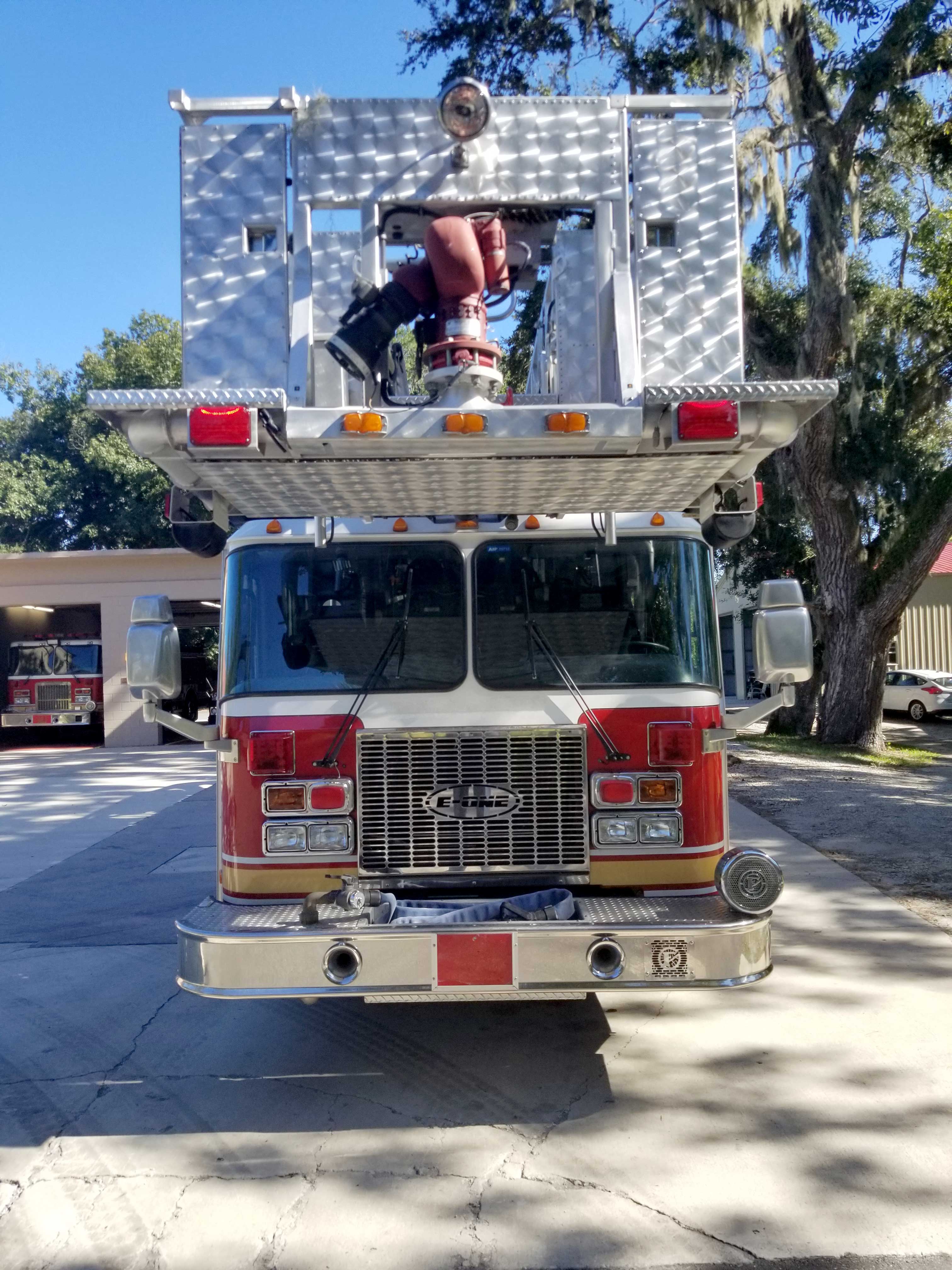

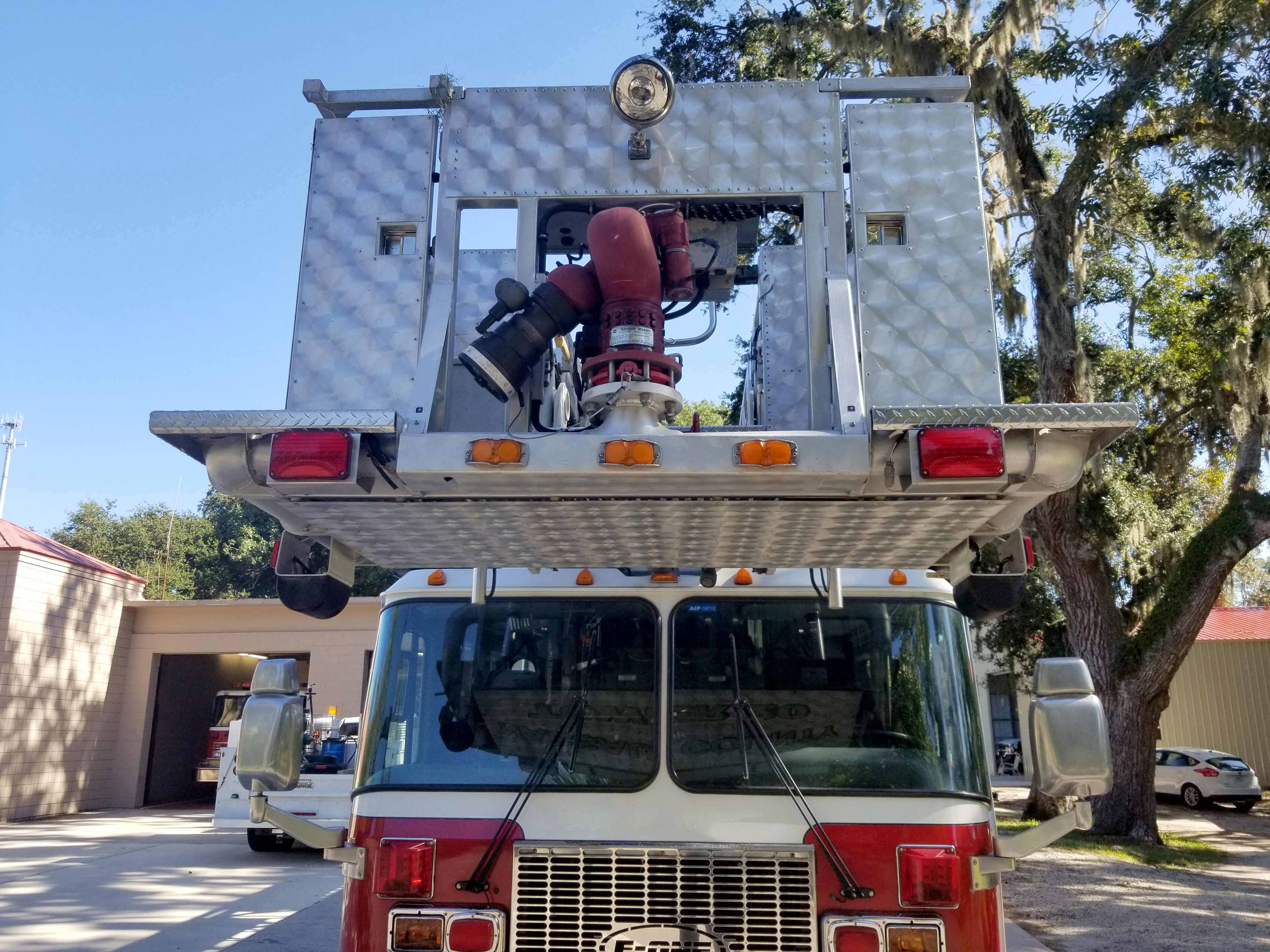

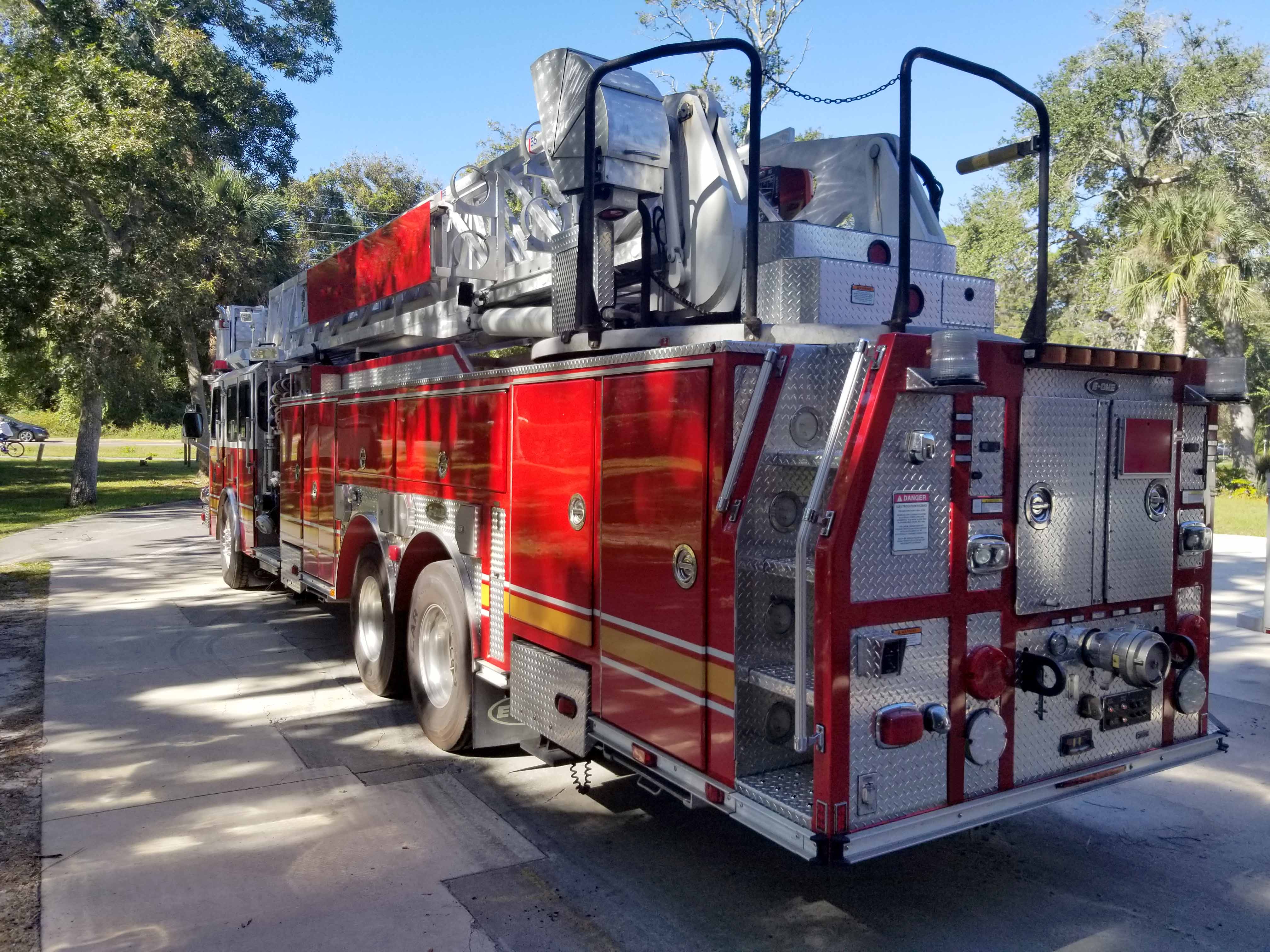

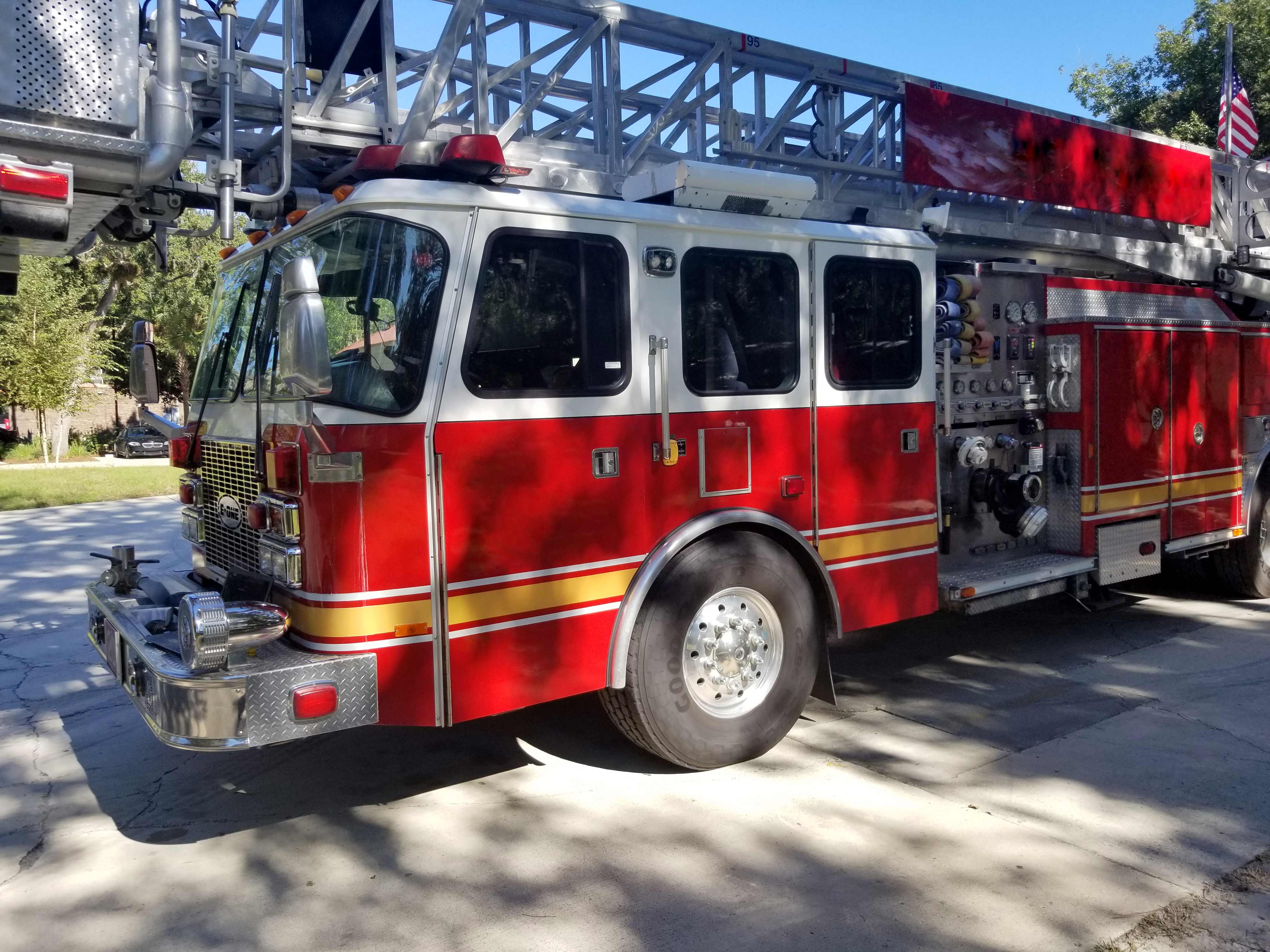

2002 E-One Cyclone II 95' Platform
50,704 miles
11986
South
Aerial
RECENTLY DELIVERED
Specifications
General
GVWR:64,260 lbs

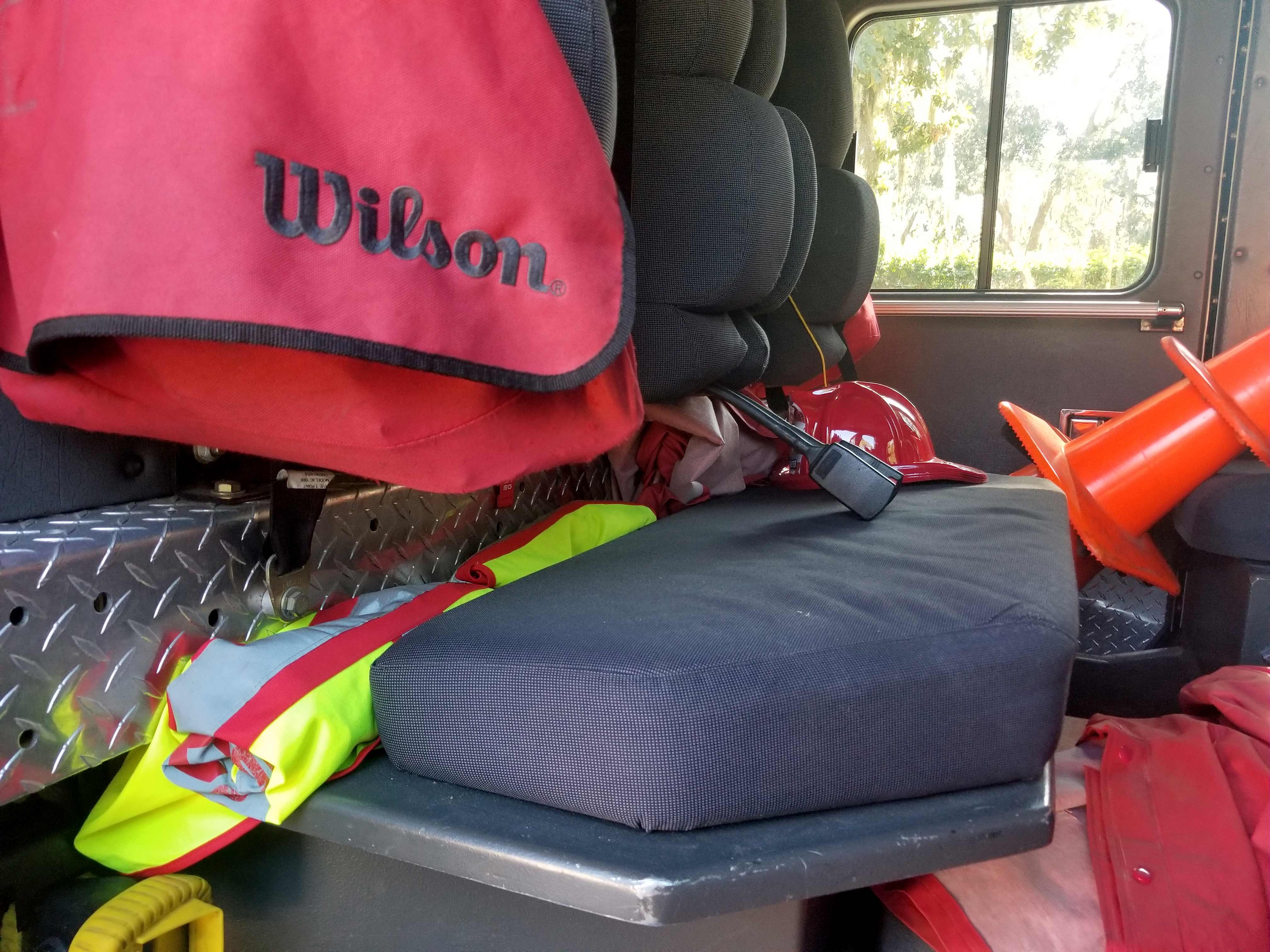

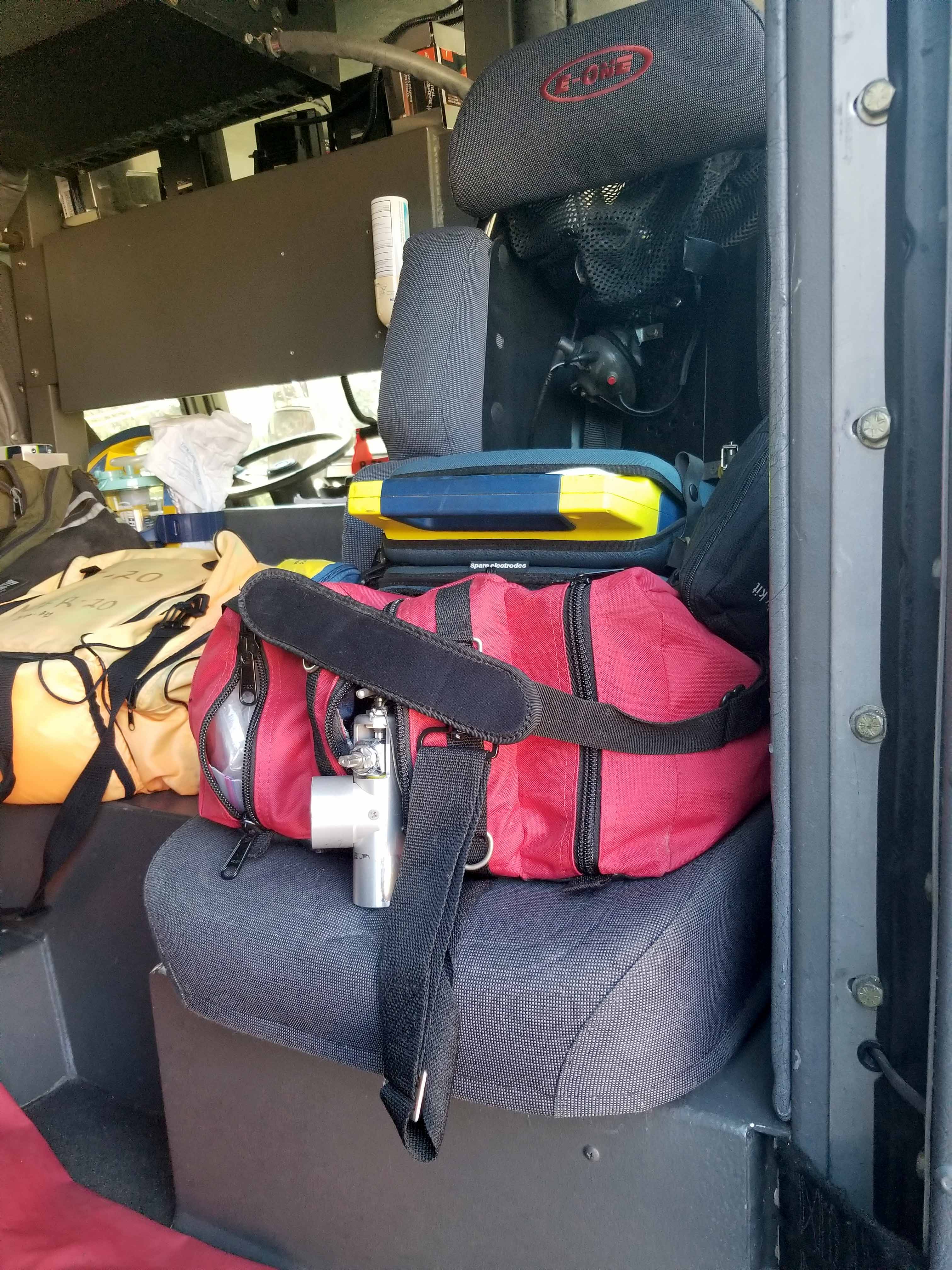

Seating Capacity:6

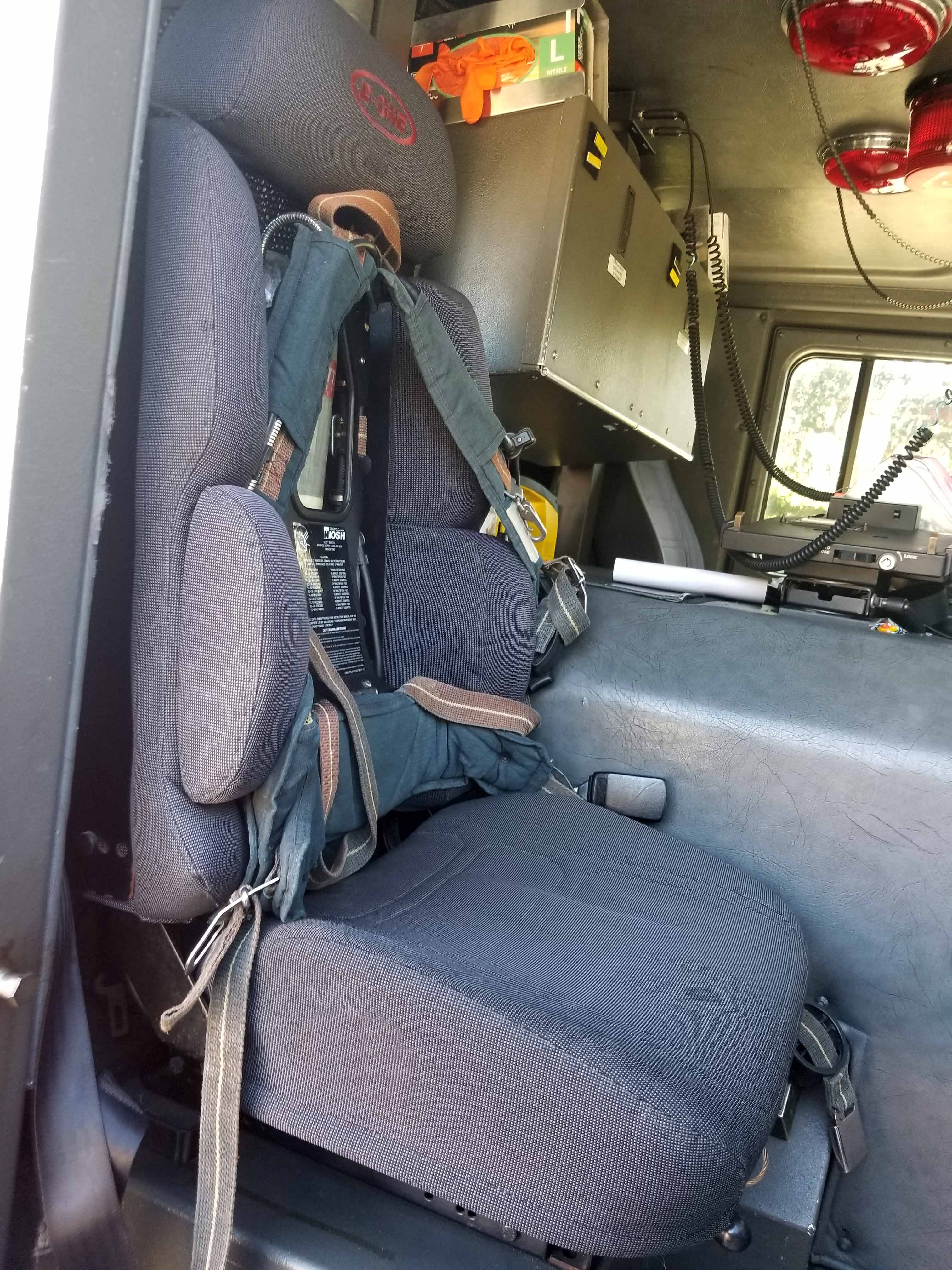

SCBA Seats:5
Engine Hours:6701
Engine Model:ISC
Engine:Cummins

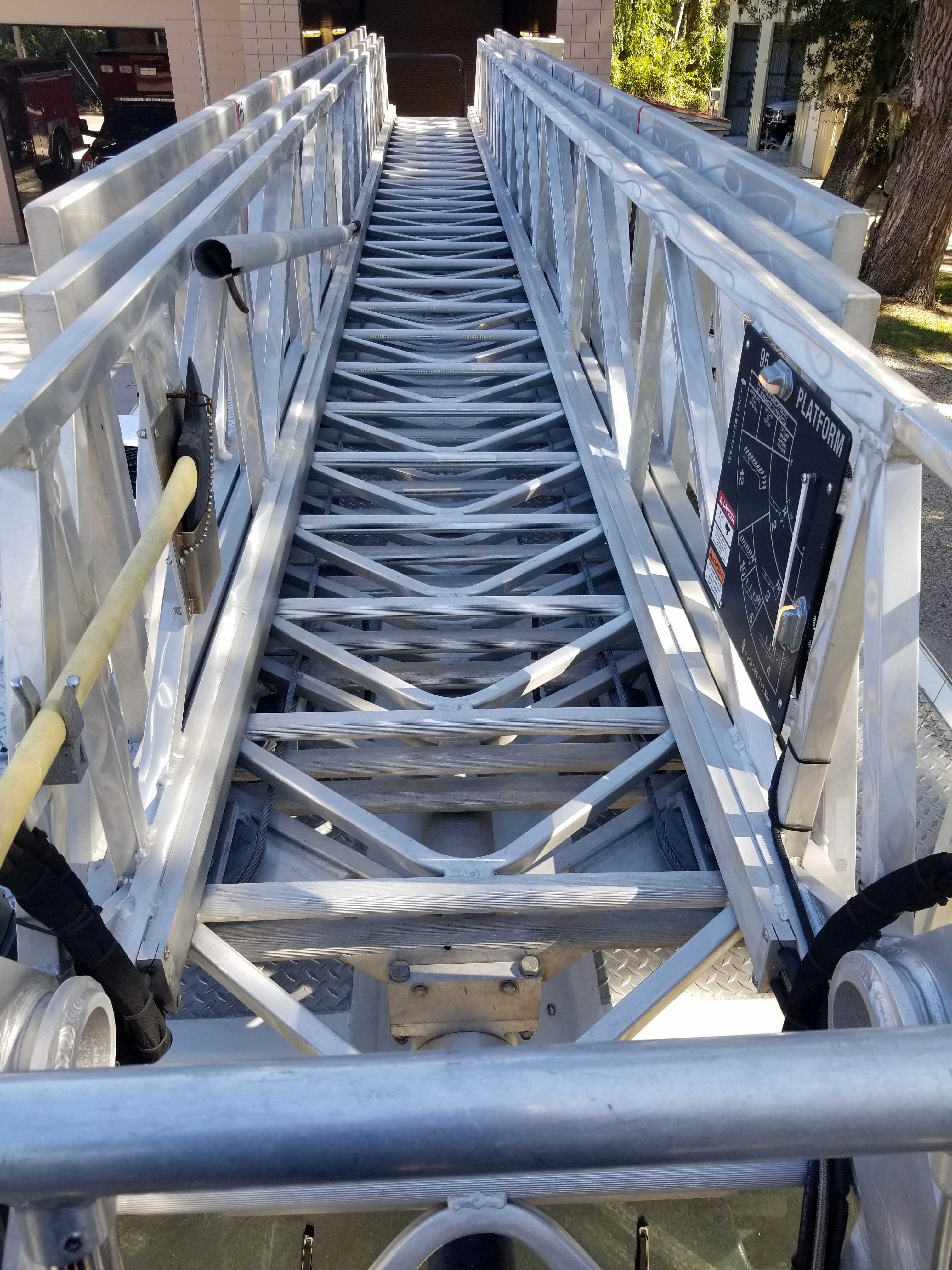

Additional Specs & Features:Chassis was very clean. The Rear Walking Beam bushings show signs of wear and need to be replaced. All 10 Tires were in very good condition and showed no signs of wear. Small oil leaks noted. Power steering gear was leaking and PTO pump leaking. Pump had leak from packing area that was dripping without pump running. The pump housing had quite a bit of corrosion on the lower housing. Tested aerial, all functions worked as designed. The ladder was very clean and cables were well adjusted. Generator tested and output was within specs, however the unit was very noisy and may require rebuild.
Chassis & Drivetrain
Chassis Model:Cyclone II
Chassis Type:Custom
Fuel Type:Diesel

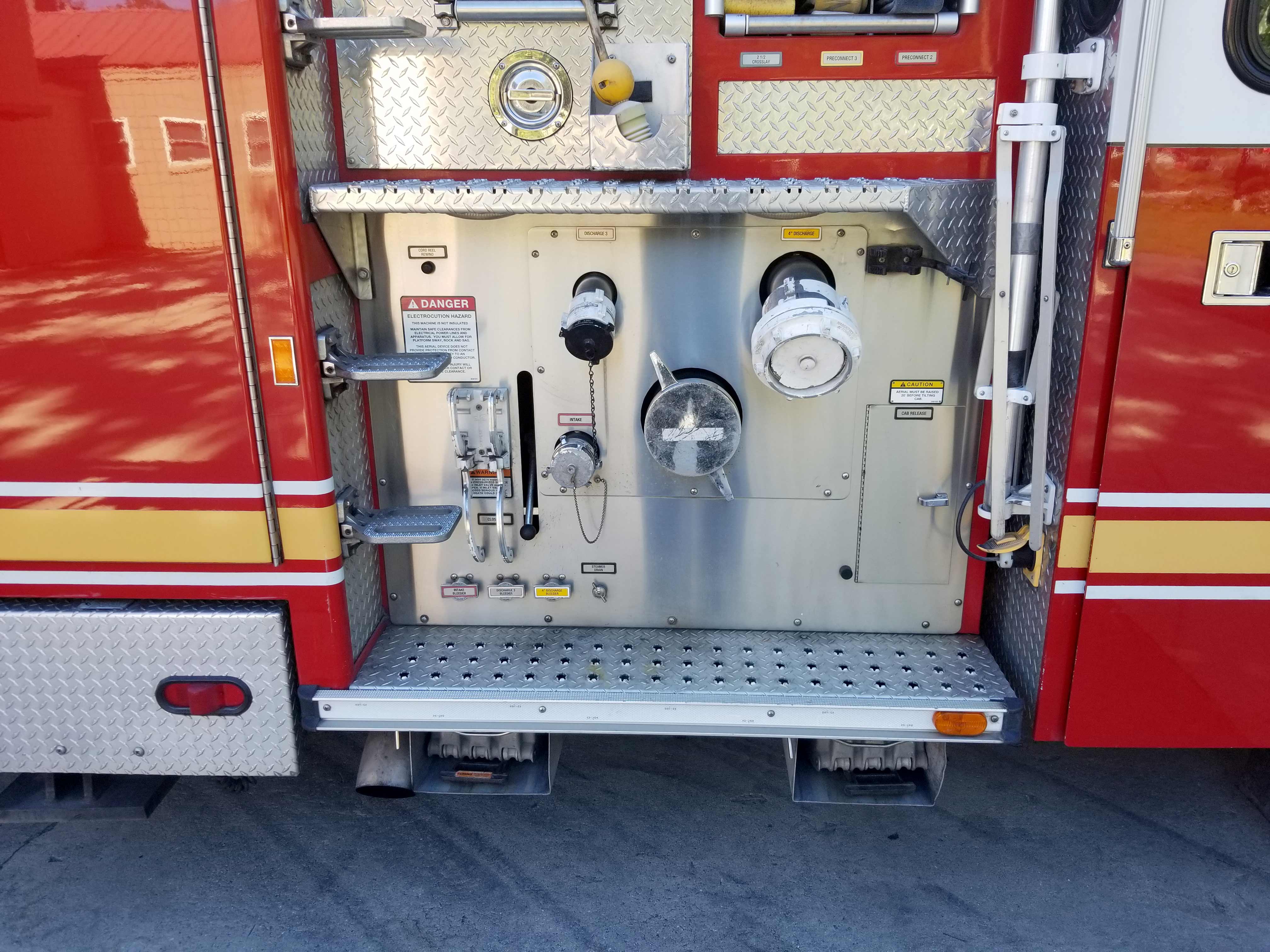

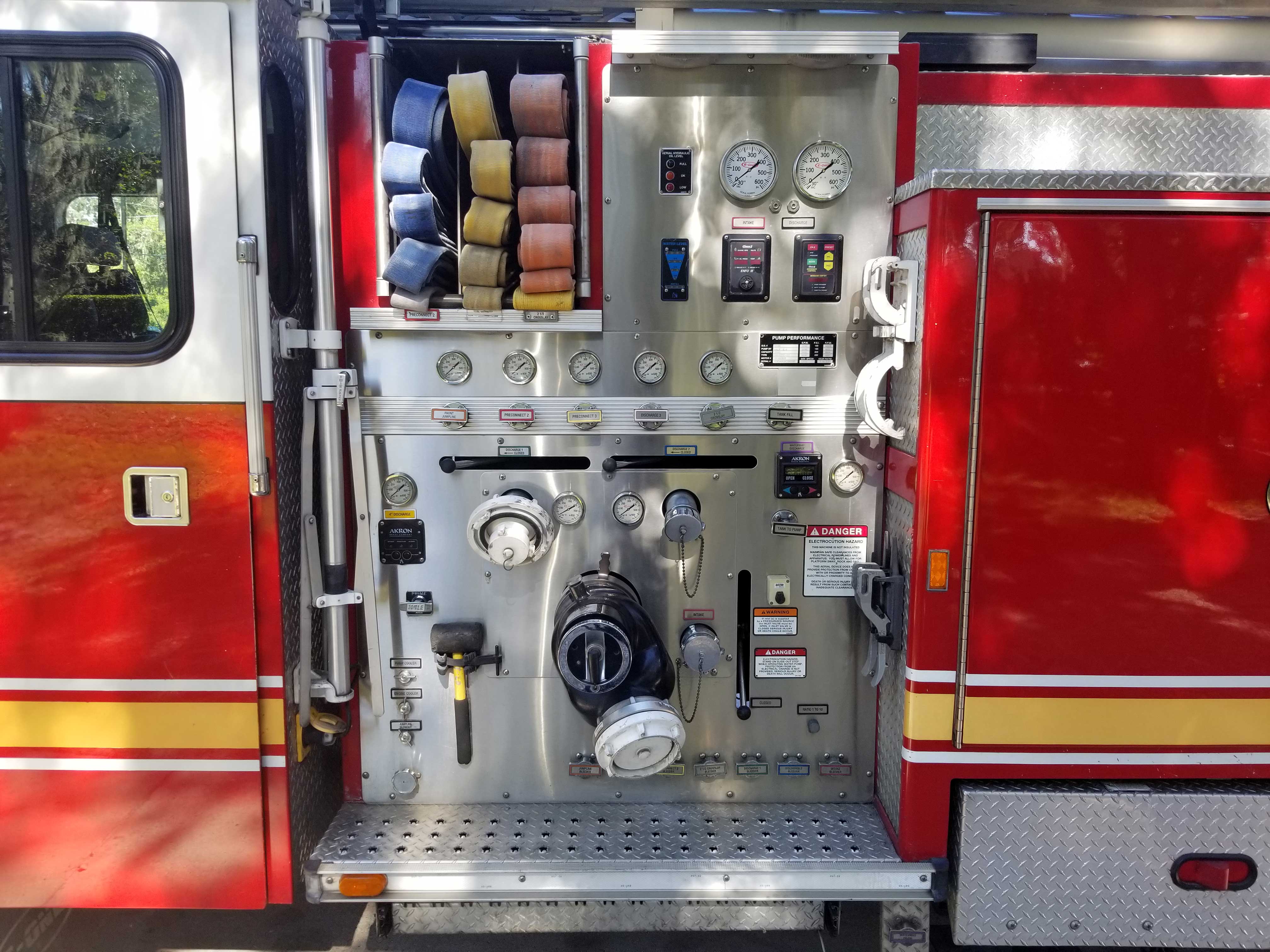

Pump & Tank
Pump Model:QMAX200-23
Pump GPM:2,000 GPM
Tank Capacity:300 gallons
Discharges & Suction
Deck Gun:Yes

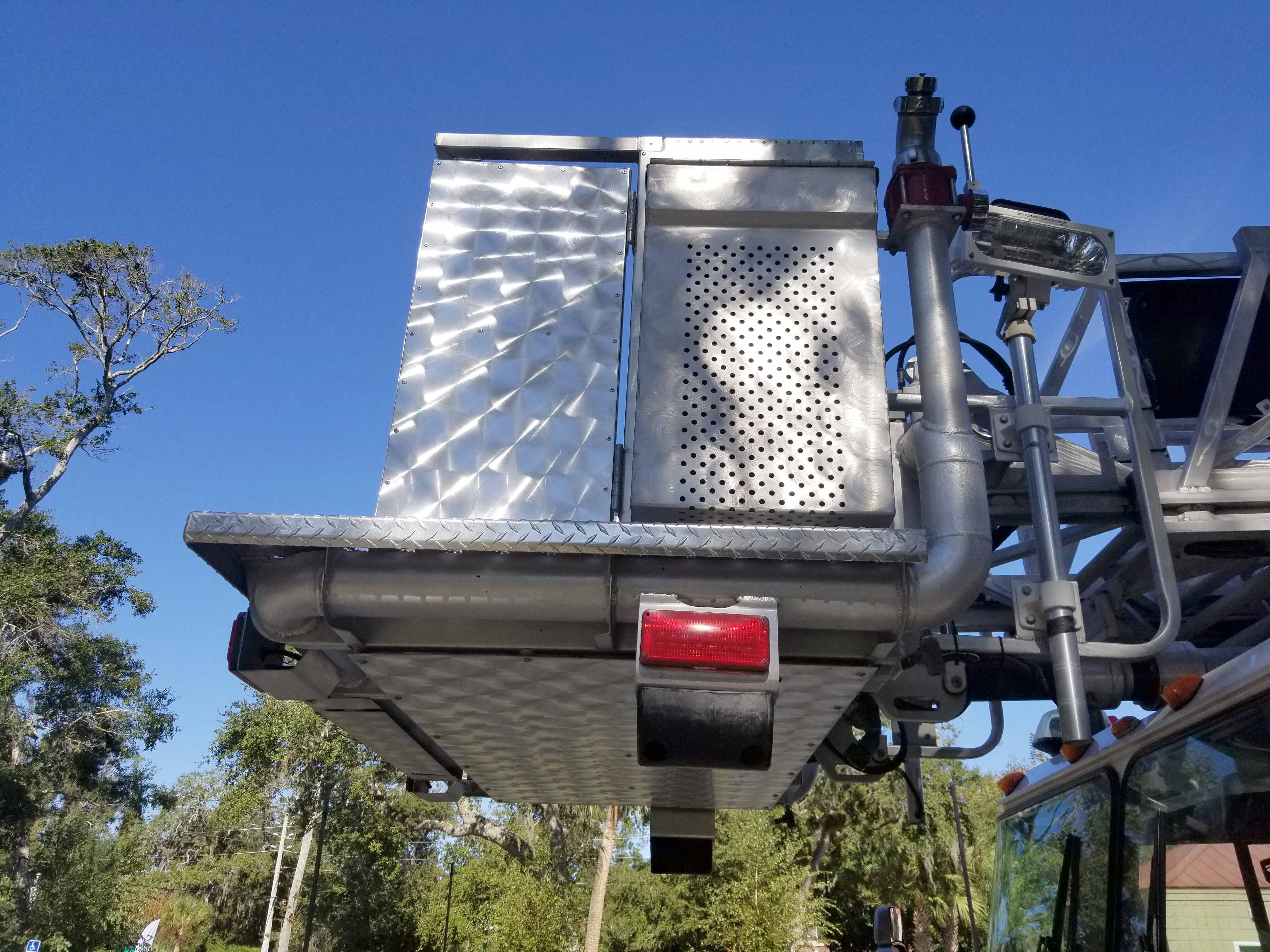

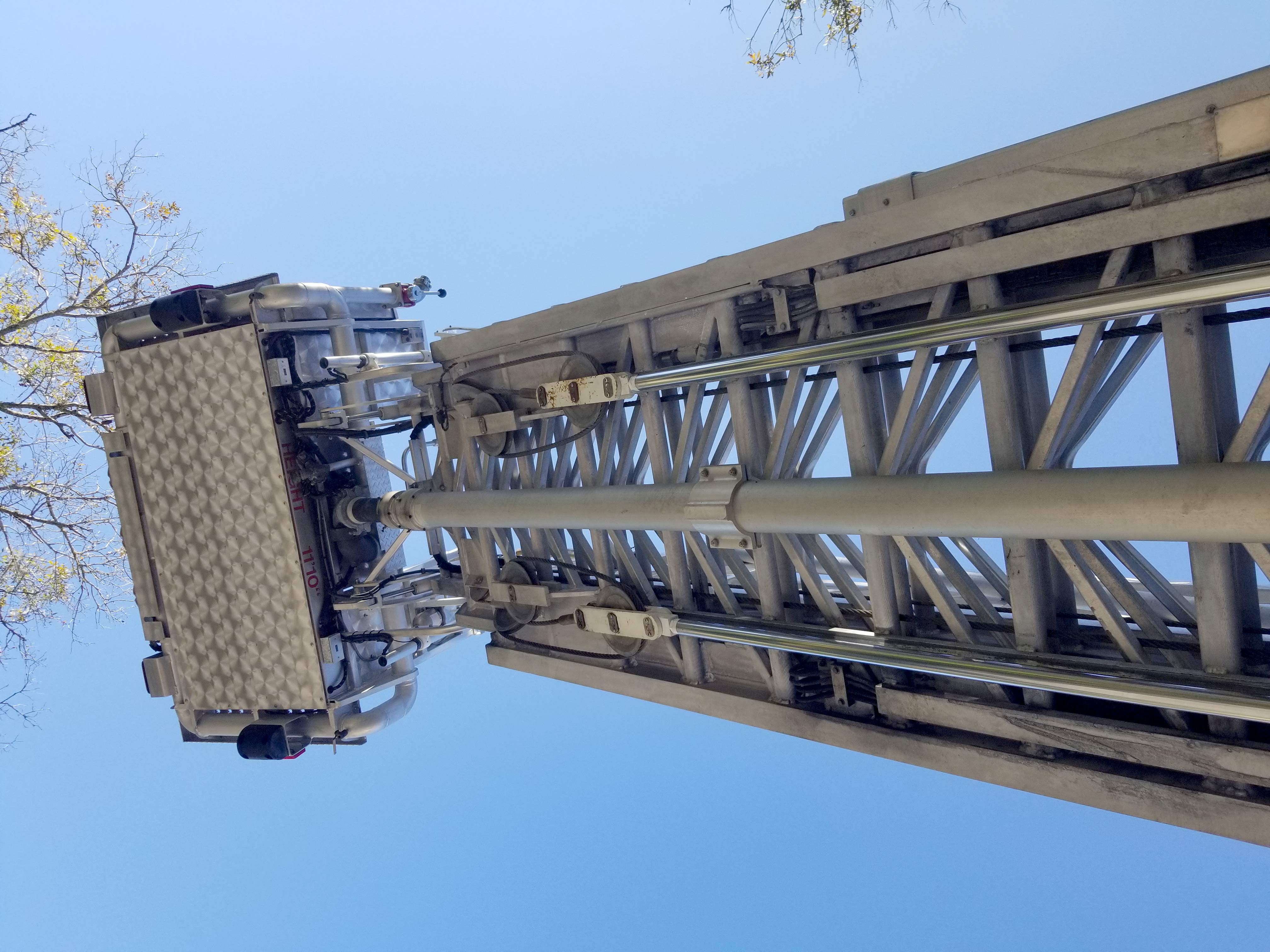

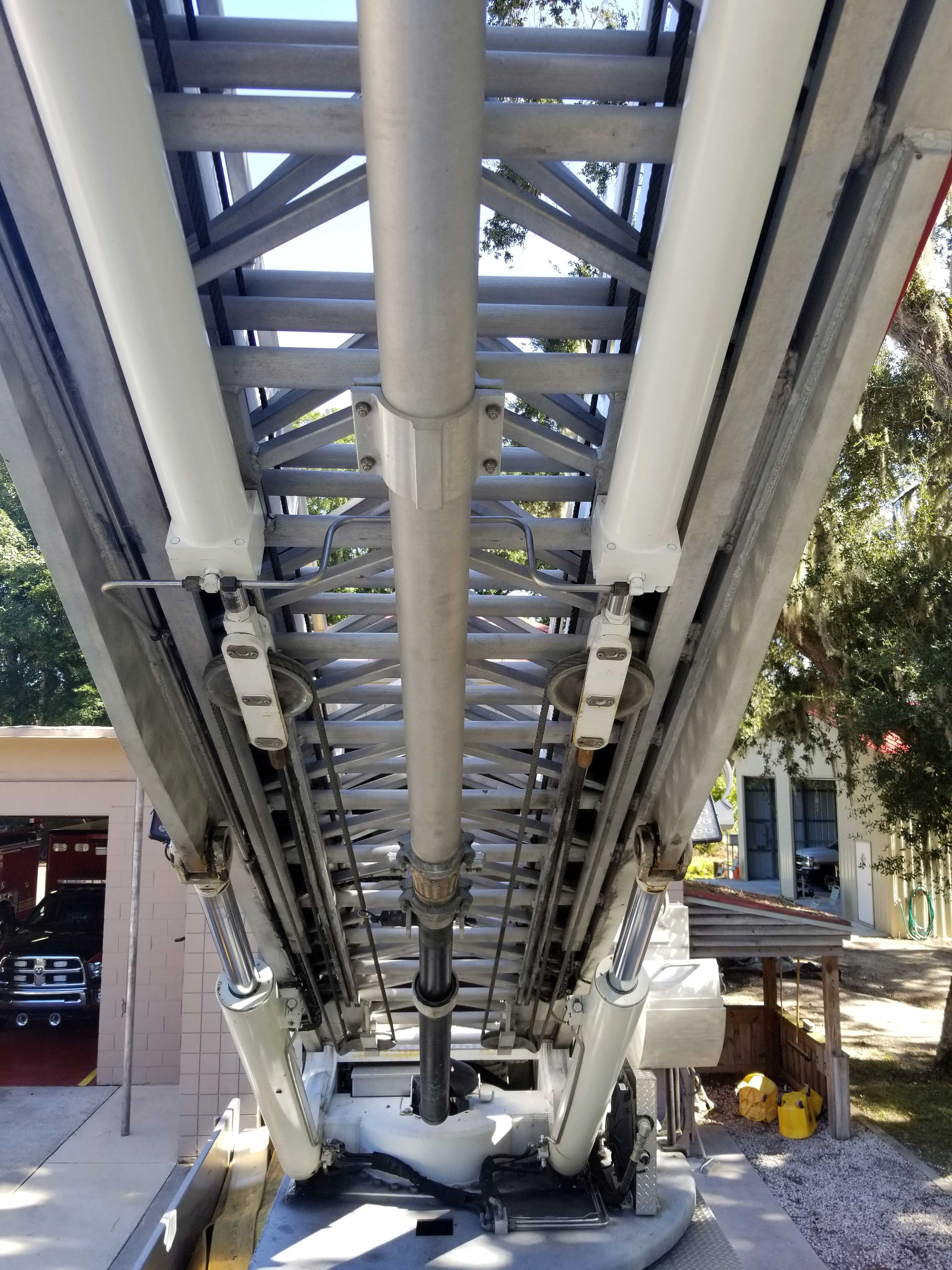

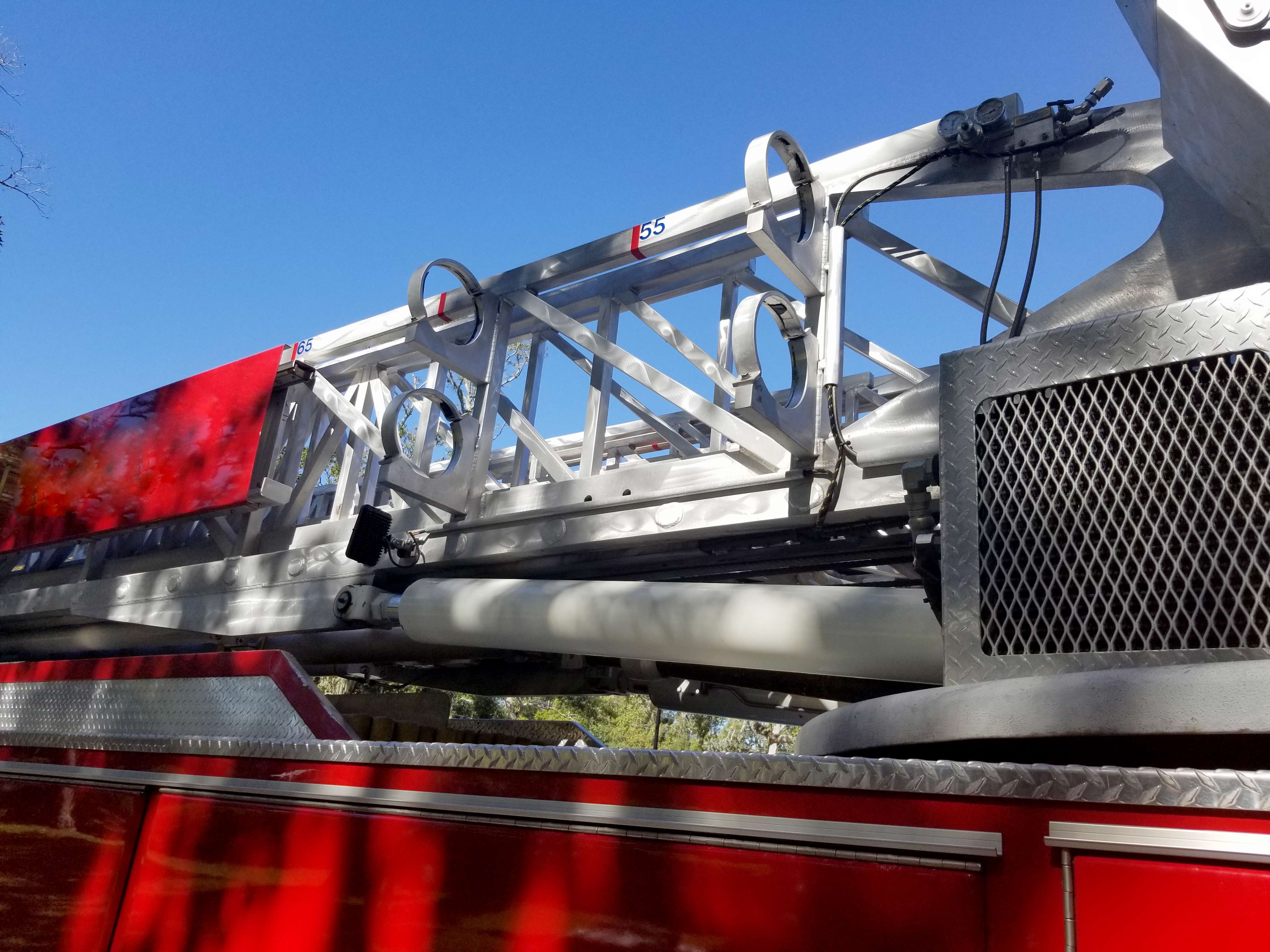

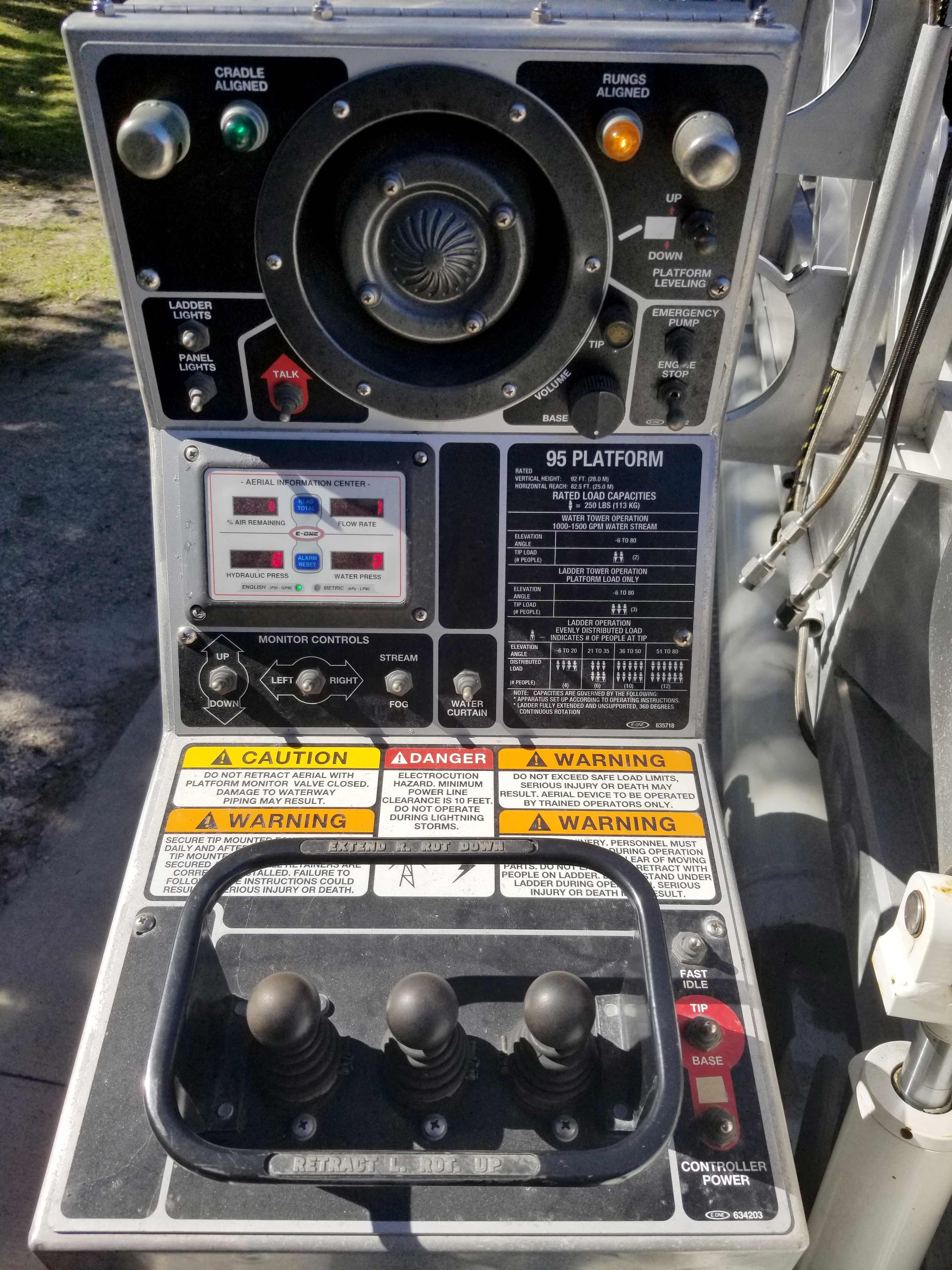

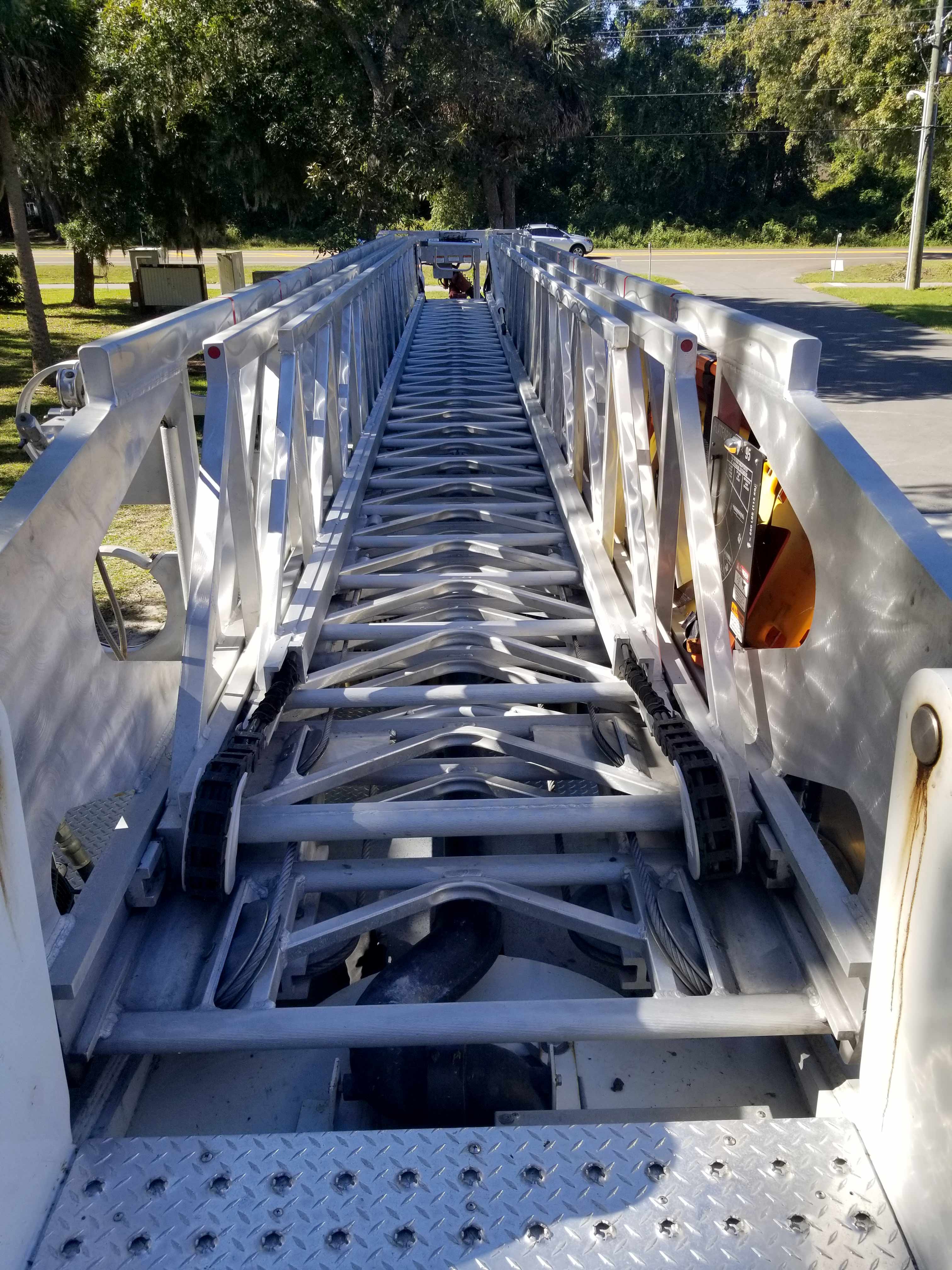

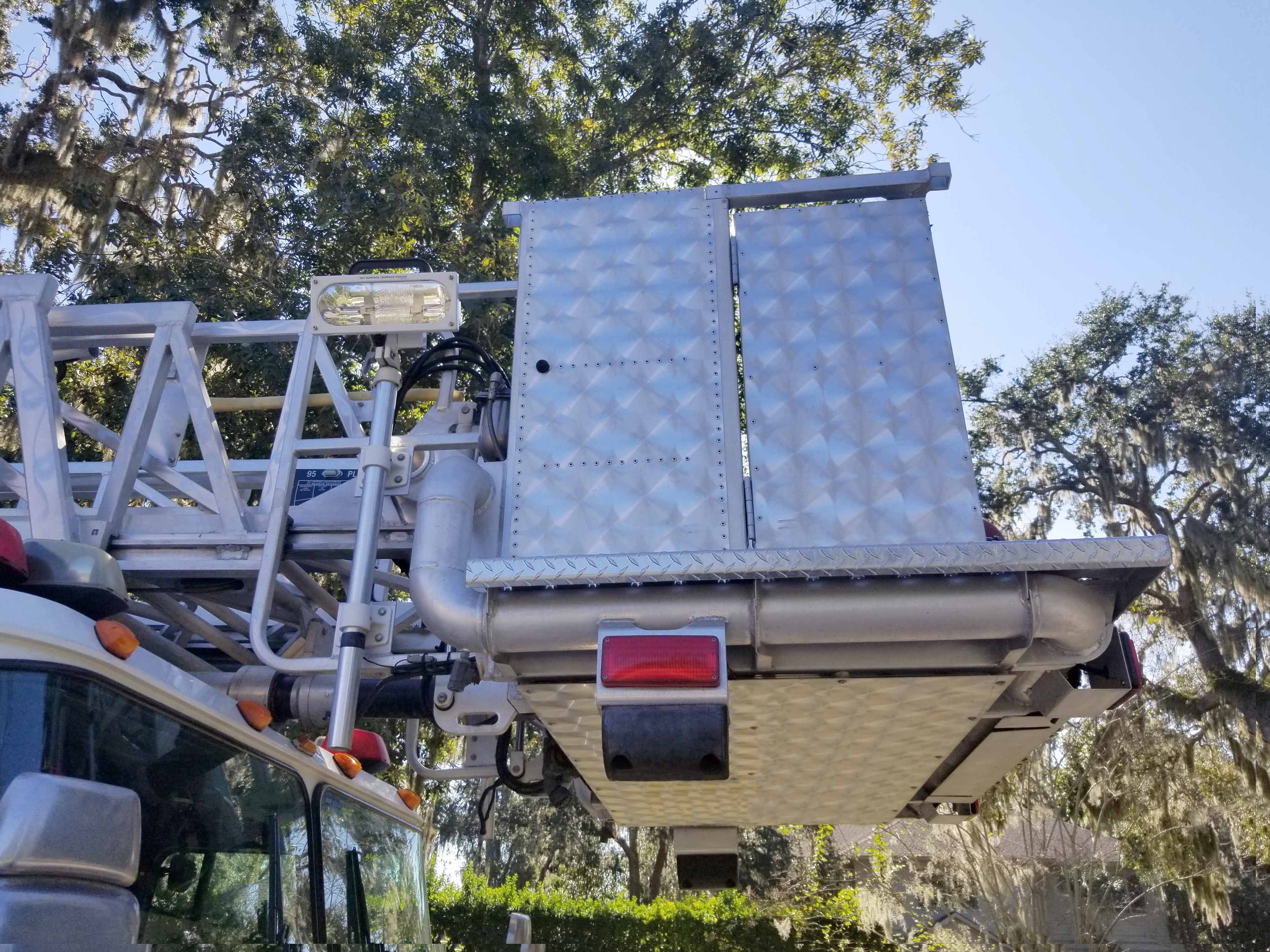

Aerial
Aerial Manufacturer:E-One
Aerial Length:95 ft
Generator & Lighting
Generator Description:AMPS Generator
Equipment & Features

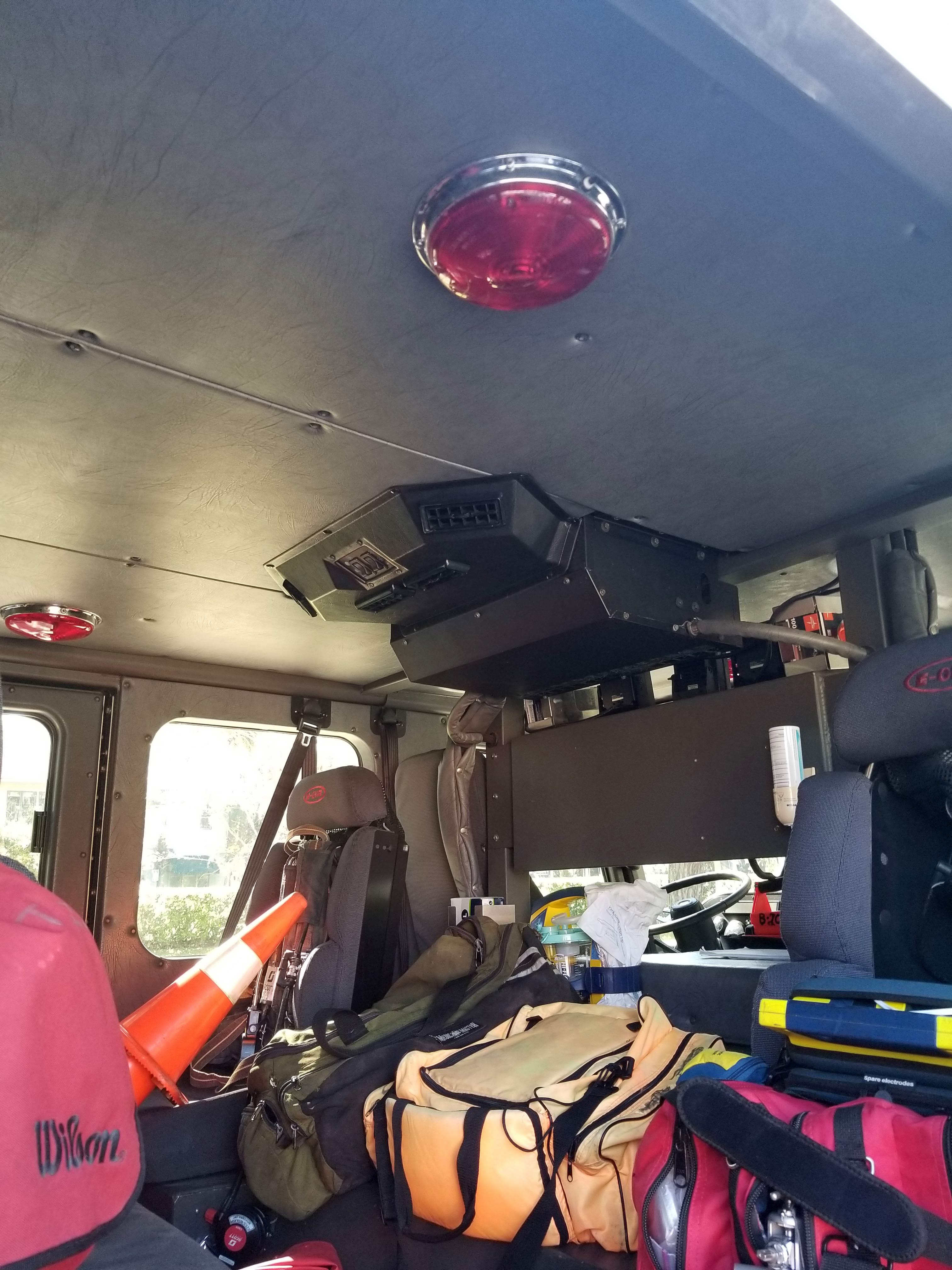

Air Conditioning:Yes
Automatic Tire Chains:Yes
Arrowstick Traffic Indicator:Yes

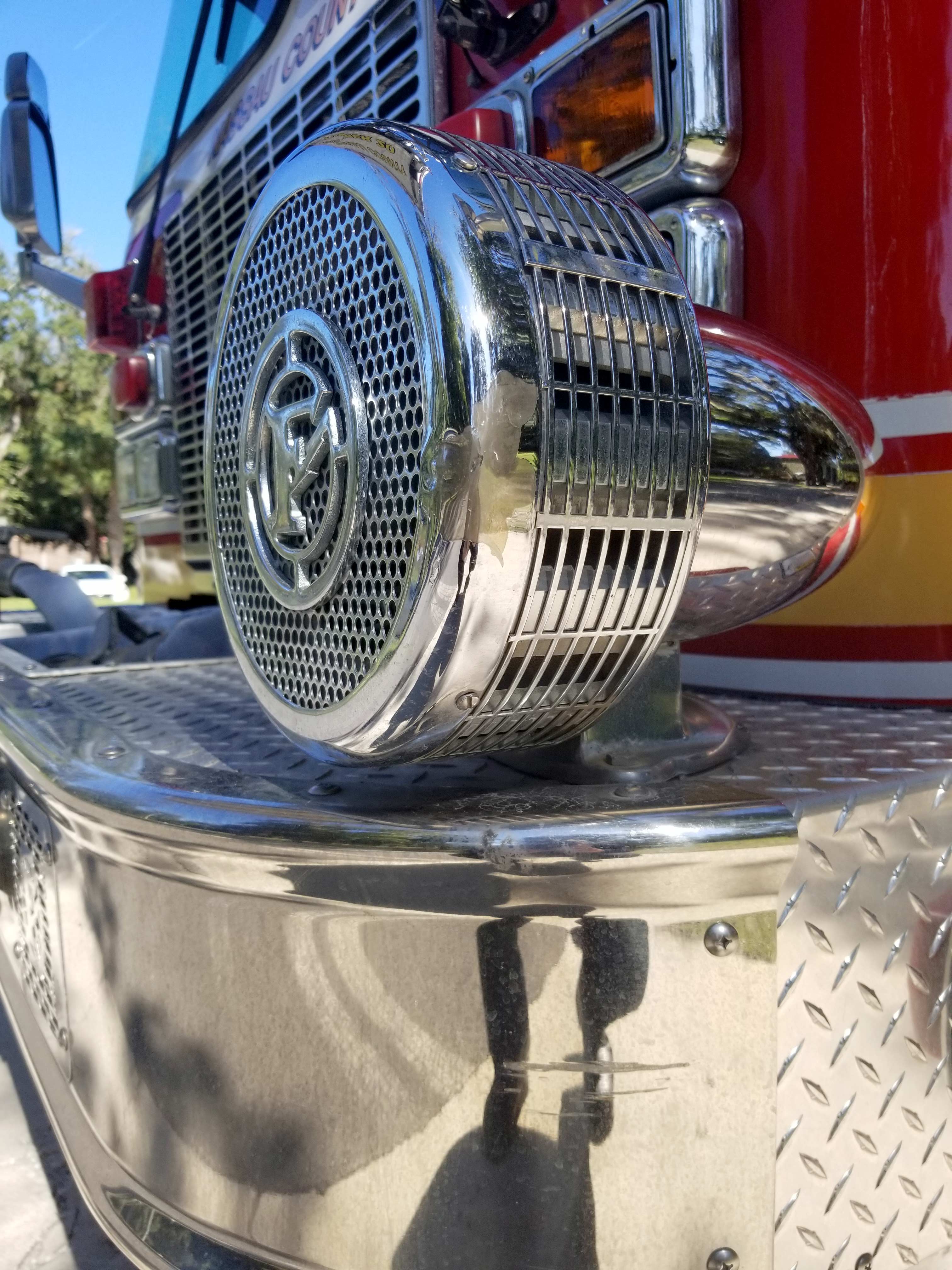

Federal Q Siren:Yes
Dimensions & Weight
GVWR (Front):18,800 lbs
GVWR (Rear):48,460 lbs
